Medical Isolation Power Supply System
Application
Operating Room
ICU/CCU
NICU
Emergency Room
Overview
Medical IT system insulation monitoring device and fault location system is suitable for hospital operating room, ICU (CCU), and other important places, and can provide a safe place for such continuous, reliable power solutions.
Structure

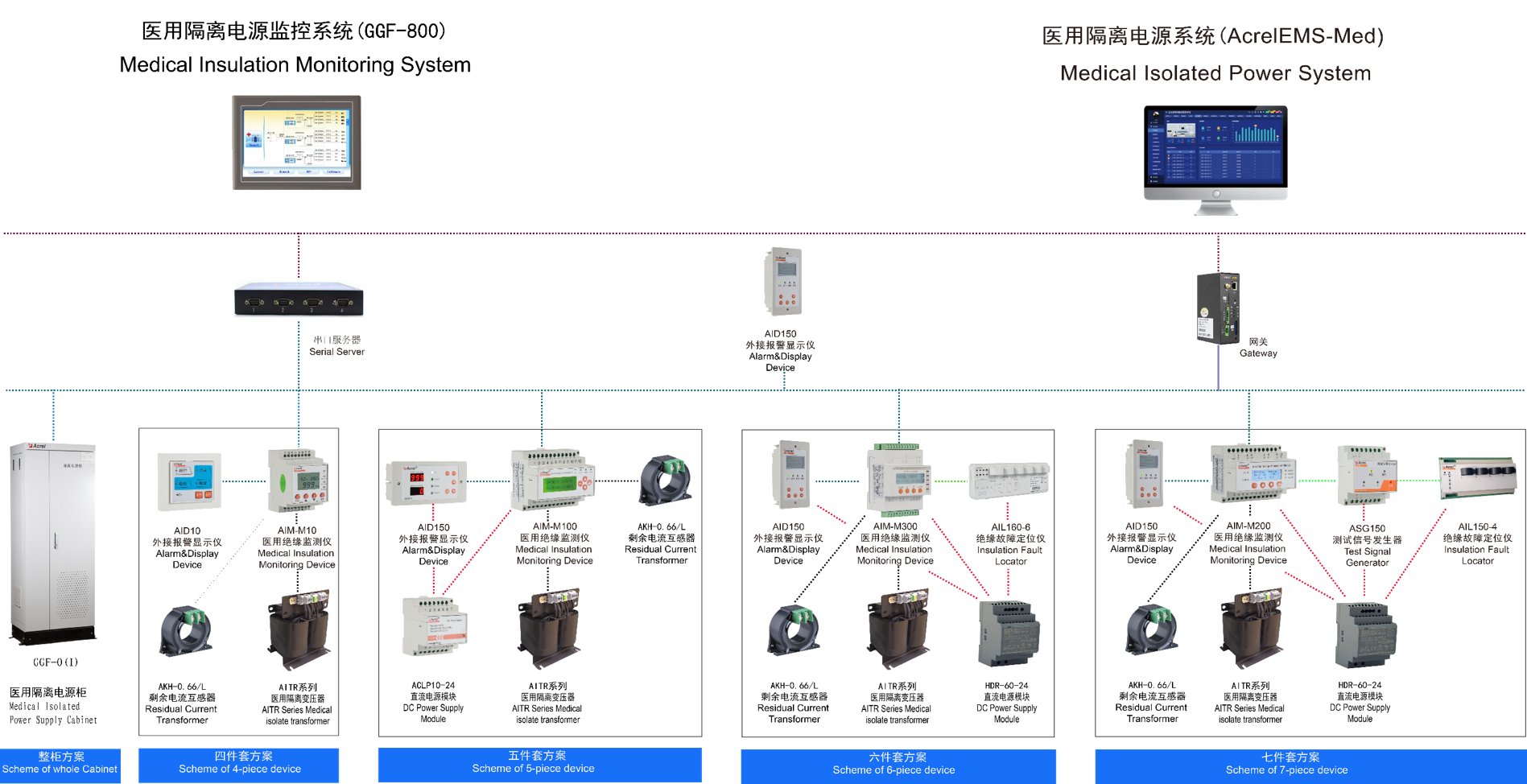

Power Distribution Diagram
Product Name |
Product Image |
Functions |

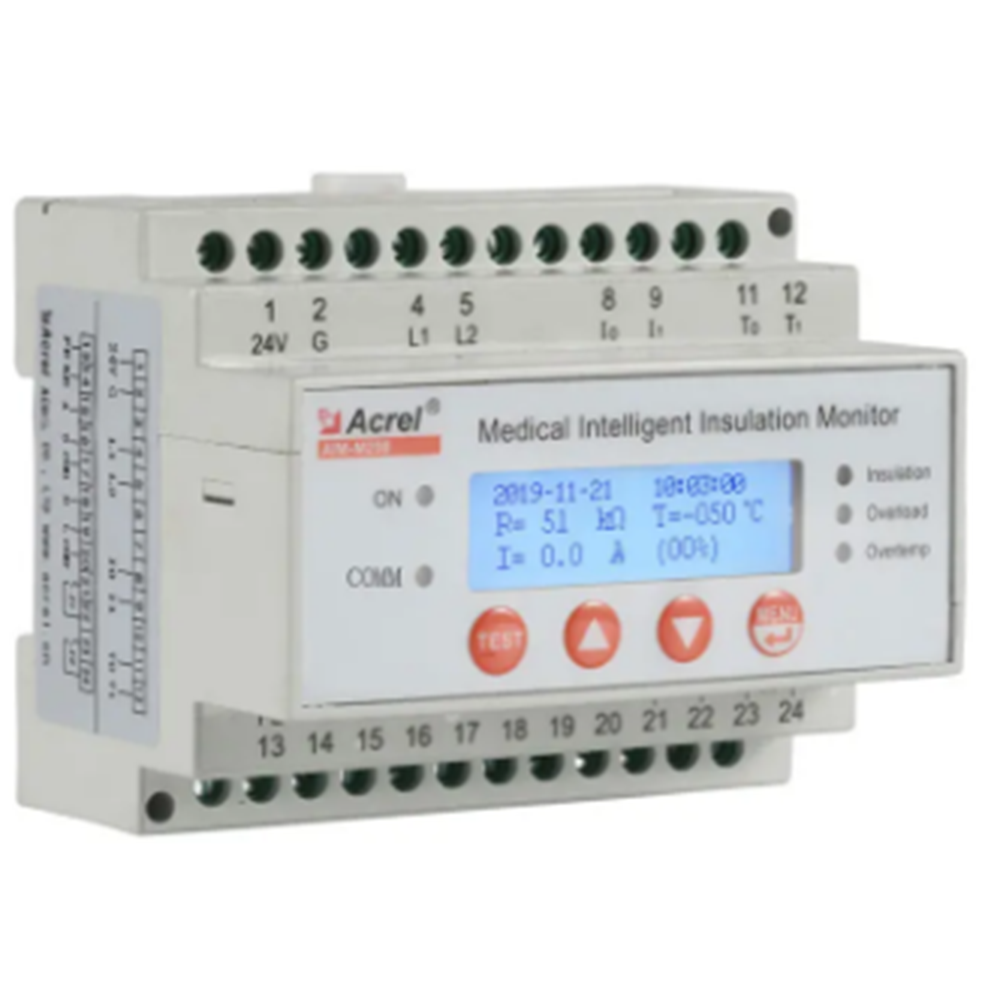

AIM-M200 Medical Intelligent Insulation Monitor |
 |
● Insulation monitoring for medical IT systems ● Real-time monitor the line disconnection fault ● Device disconnection monitoring ● LED indicators: On, Insulation, Overload, Overtemp ● Test button ● Insulation fault location ● RS485 (MODBUS-RTU) + CAN |
 |

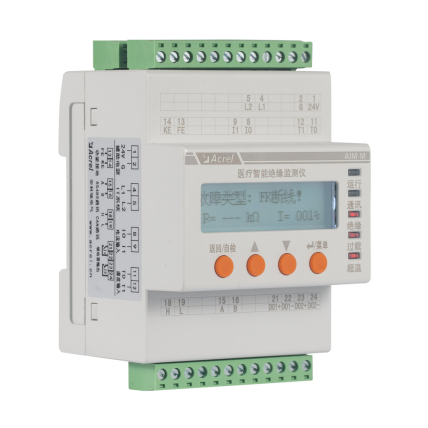

● Insulation monitoring for medical IT systems ●Load and temperature monitoring of isolation transformer ● Device disconnection monitoring ● LED indicators: On, Insulation, Overload, Overtemp ● Alarm relay output ● Test button ● Insulation fault location ● RS485 (MODBUS-RTU) + CAN ● SG Fault location function option |
|
 |

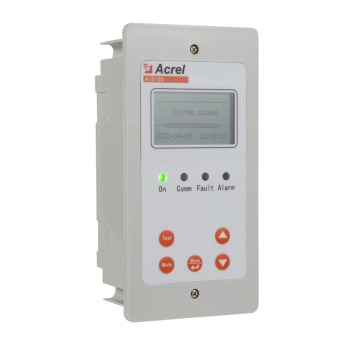

● Remote monitoring ● LED indicators：On, Insulation, Overload, Overtemp ● Mute button ● Test button ● Auxiliary power supply: DC24V ● RS485(MODBUS-RTU) |
|
 |

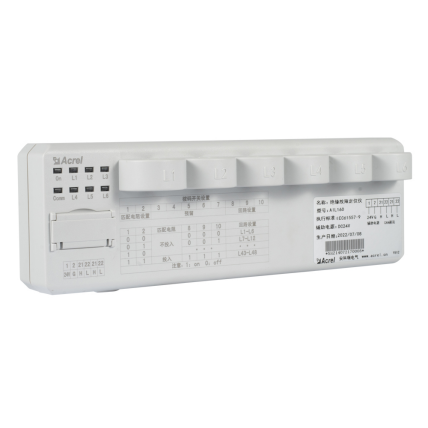

● Insulation fault location in AC IT systems ● AIL160-6: 6 measuring channels ● LED indicators: On, Comm ● CAN bus ● Auxiliary power supply: DC24V |
|
 |

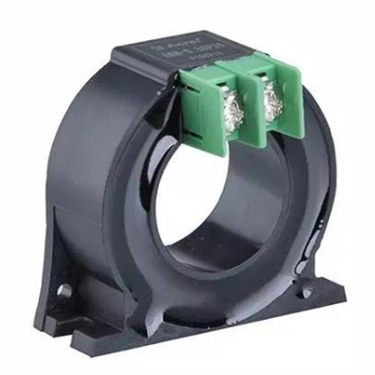

● Matching with AIM-M Series Insulation Monitor ● Maximum Current: 50A ● Transformation ratio: 2000:1 |
|
 |
● Isolating transformers for medical IT systems ● Double insulation treatment, Electrostatic shielding layer ● PT100 temperature sensor ● Rated power: 3.15…10KVA ● CE |
