Overview
Wiressless temperature monitoring solution was majorly designed for monitoring and alarming the temperature of crucial electrical connection nodes in switchgear like busbar, power cable, cable&busbar connection, CB's fixed contact, CB's moving contact and etc. Such electrical connection nodes have the potential threat of fire hazard due to the aging of material, slackness of connection and etc. Thus a real-time temperature monitoring and alarm system will be necessary to prevent it from potential fire hazard caused by the risingof temperature.

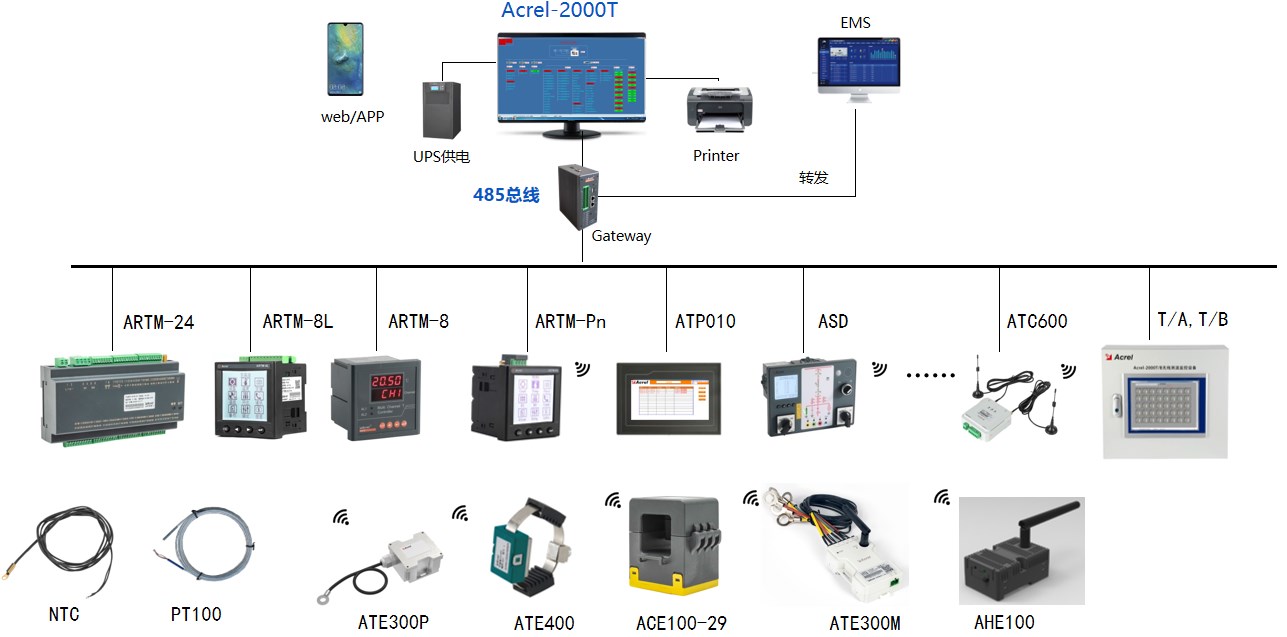

Structure
Product Name |
Product Image |
Functions |
 |
● Wireless transmit; ● Fase sampling frequency,15s; ● CT-powered, more than 5A starting current; ● Widely temperature measuring range, -40℃~125℃. |
|
 |
● 1-6 Circuits Wireless transmit; ● Wireless transmission distance, 150 meters; ● Fase sampling frequency,15s; ● Power supply: AC220V ● Widely temperature measuring range, -40℃~125℃. |
|
 |

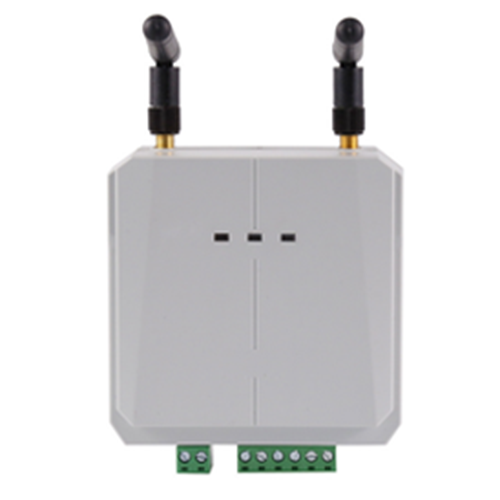

● Temperature Data Transmission: 240 ATE200/ATE400 ● Communication:RS485 ● 2 Alarm relays ● DIN 35 mm |
|
 |

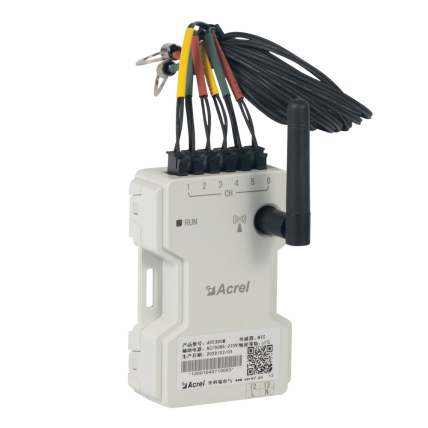

● Temperature Data Transmission: 240 ATE300M ● Communication:RS485 ● DIN 35 mm |
|
 |
● Wireless temperature measurement, maximum measuring 60 points; ● 4 digital inputs; ● 2 alarm relays; ● LCD display; ● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V; ● 1 RS485 serial communication, Modbus-RTU. |
|
 |
● Receive data from 8 PT100/PT1000/NTC, ATE300M ● 5 alarm relays; ● 1 RS485 serial communication, Modbus-RTU. |
|
 |

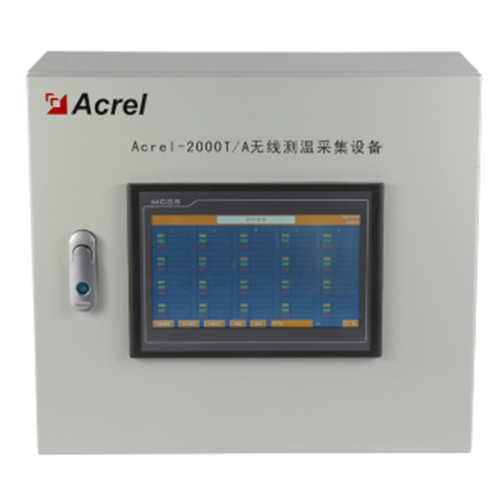

● Wireless temperature measurement, 240 points; ● Power supply adapt with AC220V, DC220V, DC110V, AC110V; ● Temperature Curve; ● High temperature alarm, buzzer; ● 1 RS485 serial communication, Modbus-RTU; ● 1 Ethernet communication. |
