Base Station Energy Monitoring Solution
Application
It is necessary to measure and monitor electrical parameters and measure energy in AC side of tower base station such as state grid, diesel, air conditioner, lighting, power supply and so on. In DC side, it is necessary to monitor electrical parameters and measure energy such as base station communication device, battery and other devices working under -48V power supply. The data can be real-time uploaded by RS485.
Structure
Acrel Base Station uses three devices to monitor the whole energy flow:
1. AC Multi-Channel energy meter is mainly used to monitor AC air-conditioning, lighting, other devices electrical usage
2. DC Multi-Channel energy meter is mainly used to monitor DC communication devices, and account for different Telecom operators' electrical usage.
3. Without energy consumption monitoring, Acrel also offers the Lead-Acid Battery's Life-Circuit Monitoring device, to make sure your UPS backup power working normally
Network
Main Functions
1. Measurement:
Multi circuits voltage, current, power, energy and other electrical parameters.
2. Communication:
RS485 Modbus-RTU, NB or 4G
3. Certificate:
With CE and IEC
4. Accuracy:
0.5s or 1
Wiring
Product Name |
Product Image |
Functions |
 |

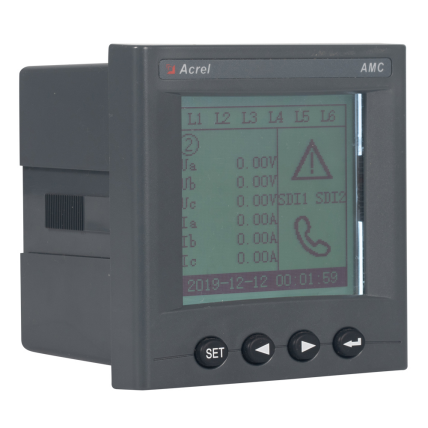

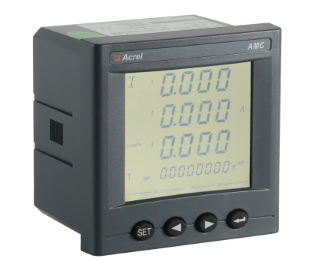

● True RMS Measurements ● THD with 2-31st Harmonics ● Max/Min Log with Timestamp ● Internal Optional 4DI&2DO or 2DI&2DO&2AO ● Standard one Energy Pulse Output |
|
 |

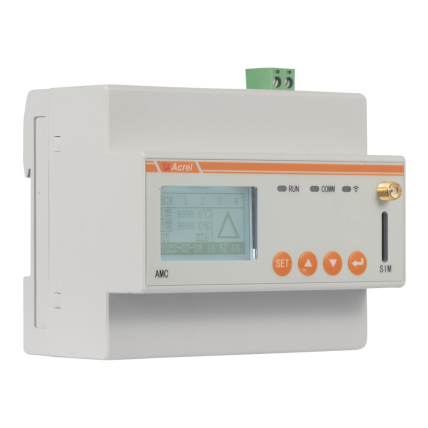

●Monitor 6 channel three phase or 18 channel single phase ●Measurement:voltage,current,power,energy and other parameters ● Communication:RS485, NB or 4G options |
|
 |

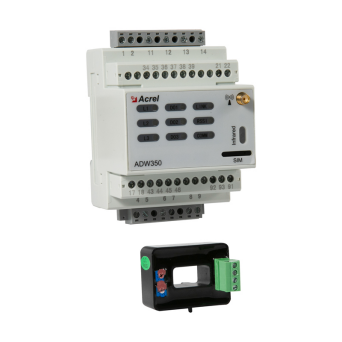

● Mearsure Up to 4 circuits 3 phase ● Mearsure all electric parameters ● Split core open loop CTs ● External function module, such as MK(switching inputs and outputs), MTL(temperature measurement and leakage current measurement), AWT100(wireless communication) |
|
 |

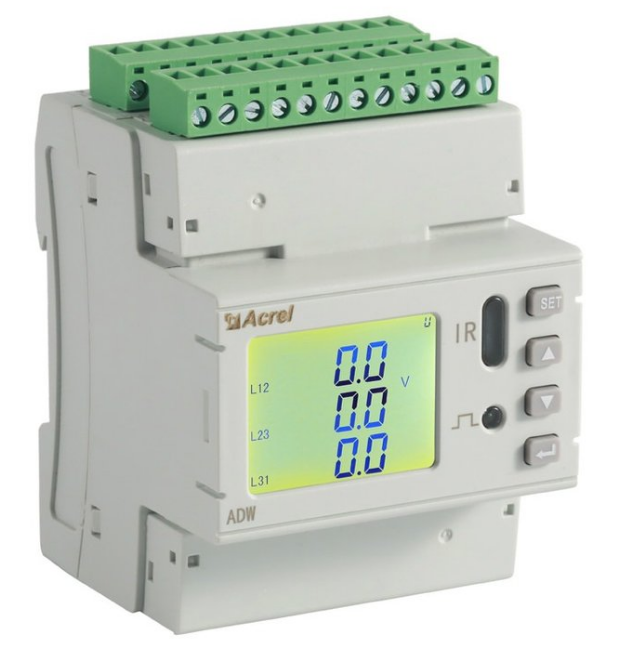

●Monitor up to 8 channel three phase ●Measurement:voltage,current,power,energy and other parameters ● 6 switching input (2 active, 4 passive), 2 switching output ●4 NTC temperature |
|
|

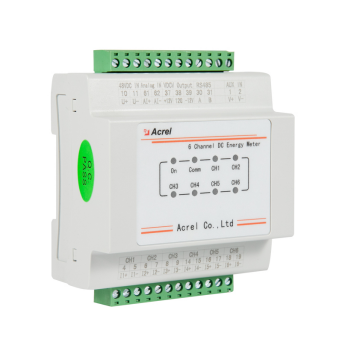

● 12 DC circuits ● measure voltage, current, power, etc ● 6 switch inputs (2 active, 4 passive), 2 switch outputs ● 4 channels NTC temperature measurement |
|
 |
● DIN 35 mm ● 3 circuits DC input or 1 circuit 3 phase AC input ● Measurement: voltage, current, power, energy and other parameters ● Communication: NB or 4G |
|
 |
● DC rated voltage: -48VDC ● Accuracy:1%In≤I≤10%In error±2.5%; I>10%In error±2% ● RS485(MODBUS-RTU) ● DIN 35 mm |
|
 |
● DC rated voltage: -48VDC ● Accuracy:1%In≤I≤10%In error±2.5%; I>10%In error±2% ● RS485(MODBUS-RTU) ● LCD display ● DIN 35 mm |
|
 |

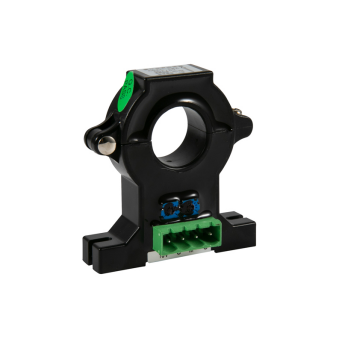

● Input: 0~(50-500)A ● Output: 5V or 4V ● Power Supply: DC±12V/±15V |
