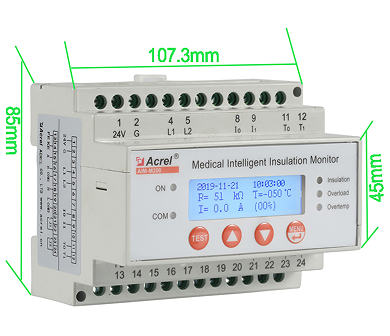

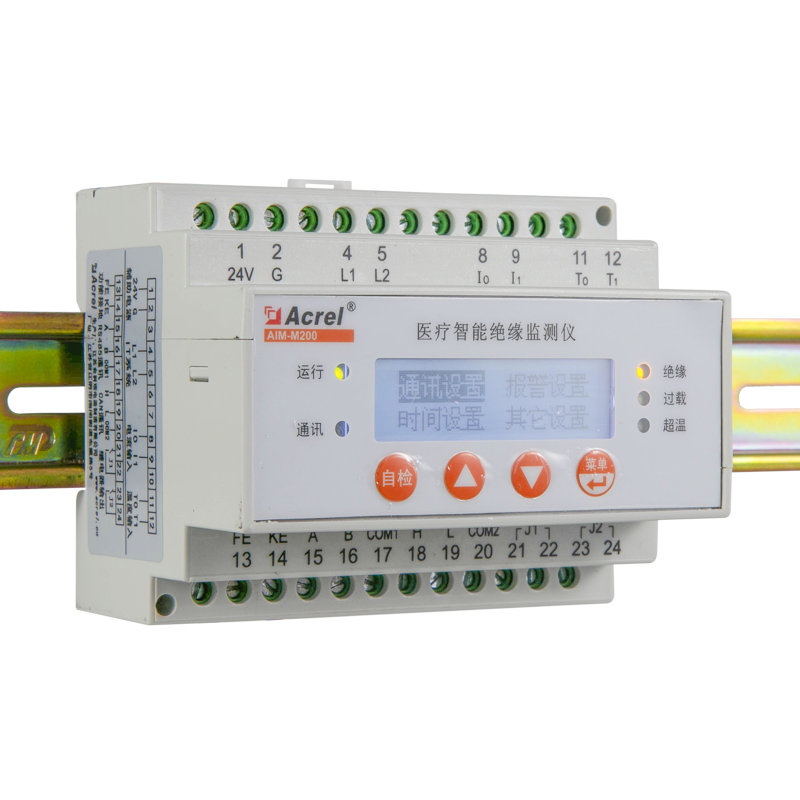

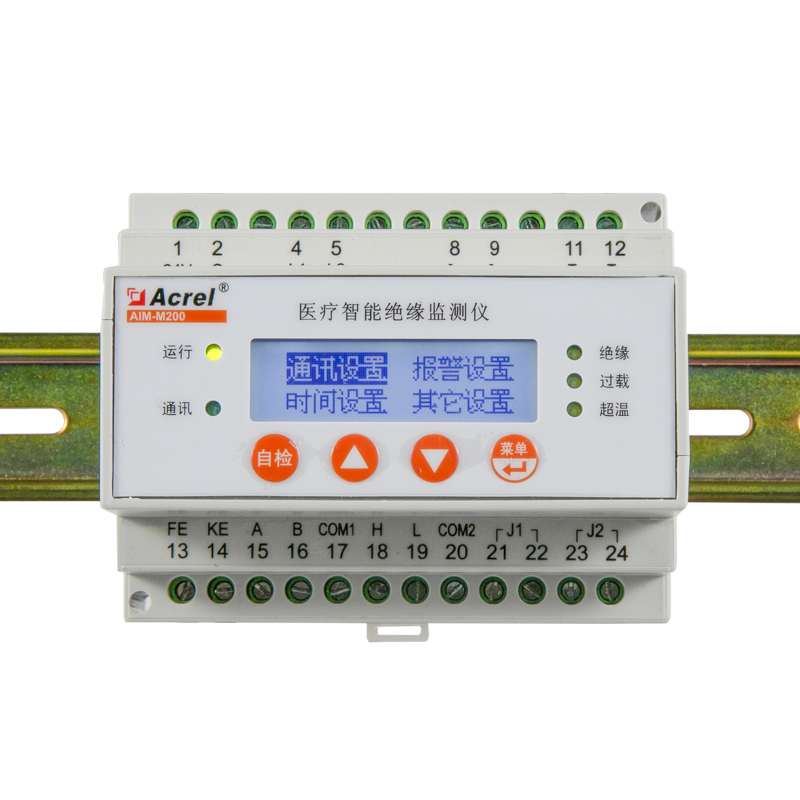

AIM-M200 Medical Intelligent Insulation Monitor
● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring

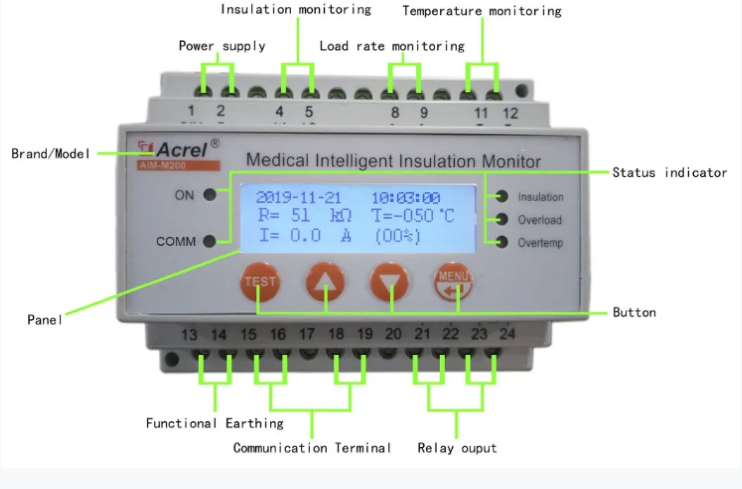

● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● Din 35mm
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN

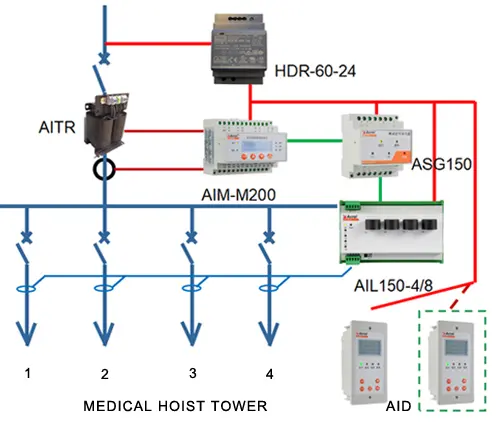

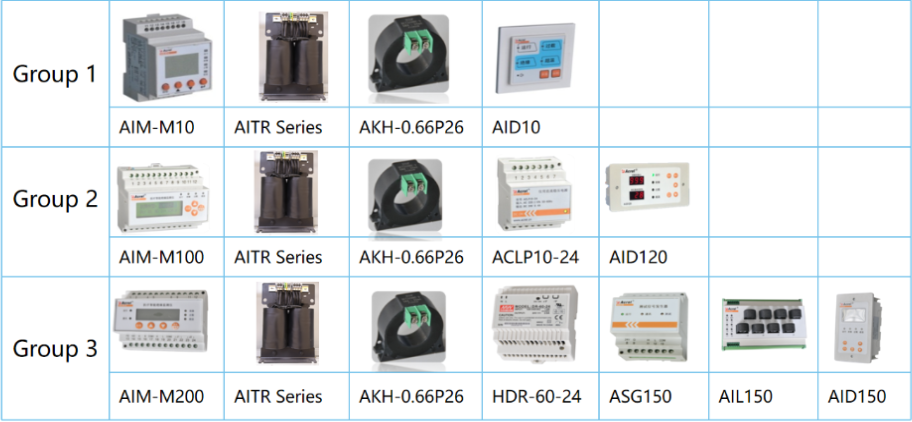

The AIM-M200 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M200 is designed to support insulation fault location..
