Power IoT Could Patform
Application
Substation，building，telecommunication base station，industrial energy consumption，intelligent lighthouse，operation and maintenance of power.
.jpg?x-oss-process=image/resize,w_1920/quality,q_100)

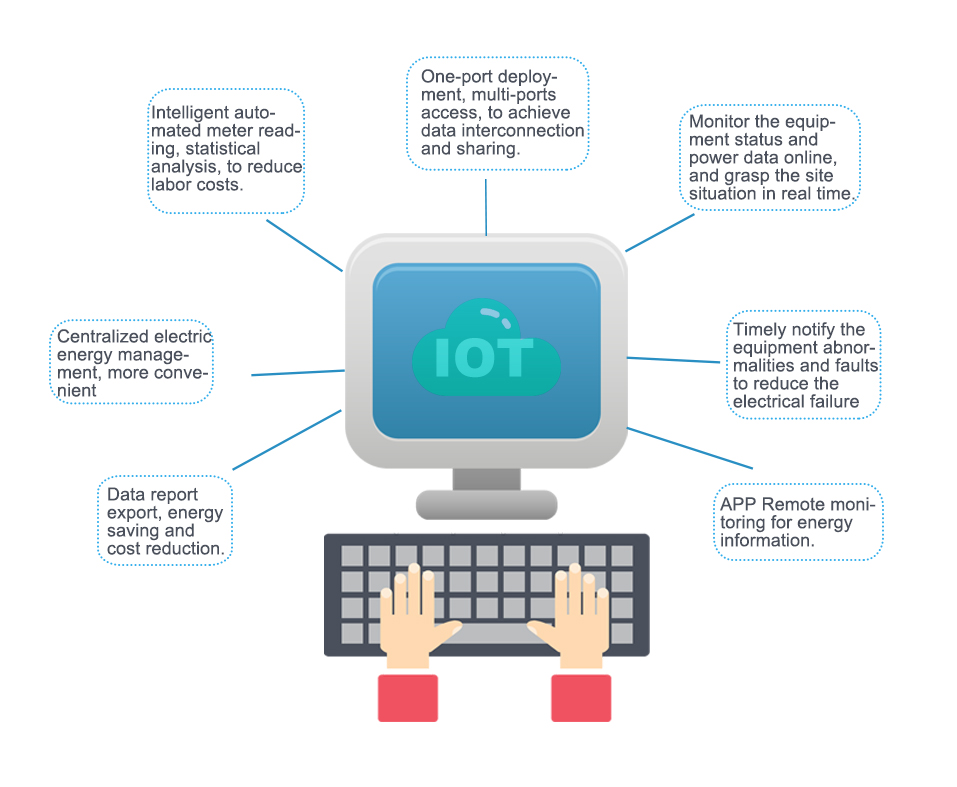

IOT System Value
Advantage
Centralized monitoring
Remote devices upload data 24 hours a day.
Self-registration
Users can register their own accounts and add devices through the mobile app.
Energy Analysis
Get the energy consumption of the devices anytime, anywhere.
Alarm
Once an alarm occurs on the device, the alarm data will be uploaded in real time and pushed by the app to relevant person.
1. Centralized monitoring: Remote devices upload data 24 hours a day.
2. Self-registration: Users can register their own accounts and add devices through the mobile app.
3. Energy Analysis: Get the energy consumption of the devices anytime, anywhere.
4. Alarm: Once an alarm occurs on the device, the alarm data will be uploaded in real time and pushed by the app to relevant person.
Platform Display
Mobile Platform
Alarm Report
Alarm Report
Energy Analysis Report

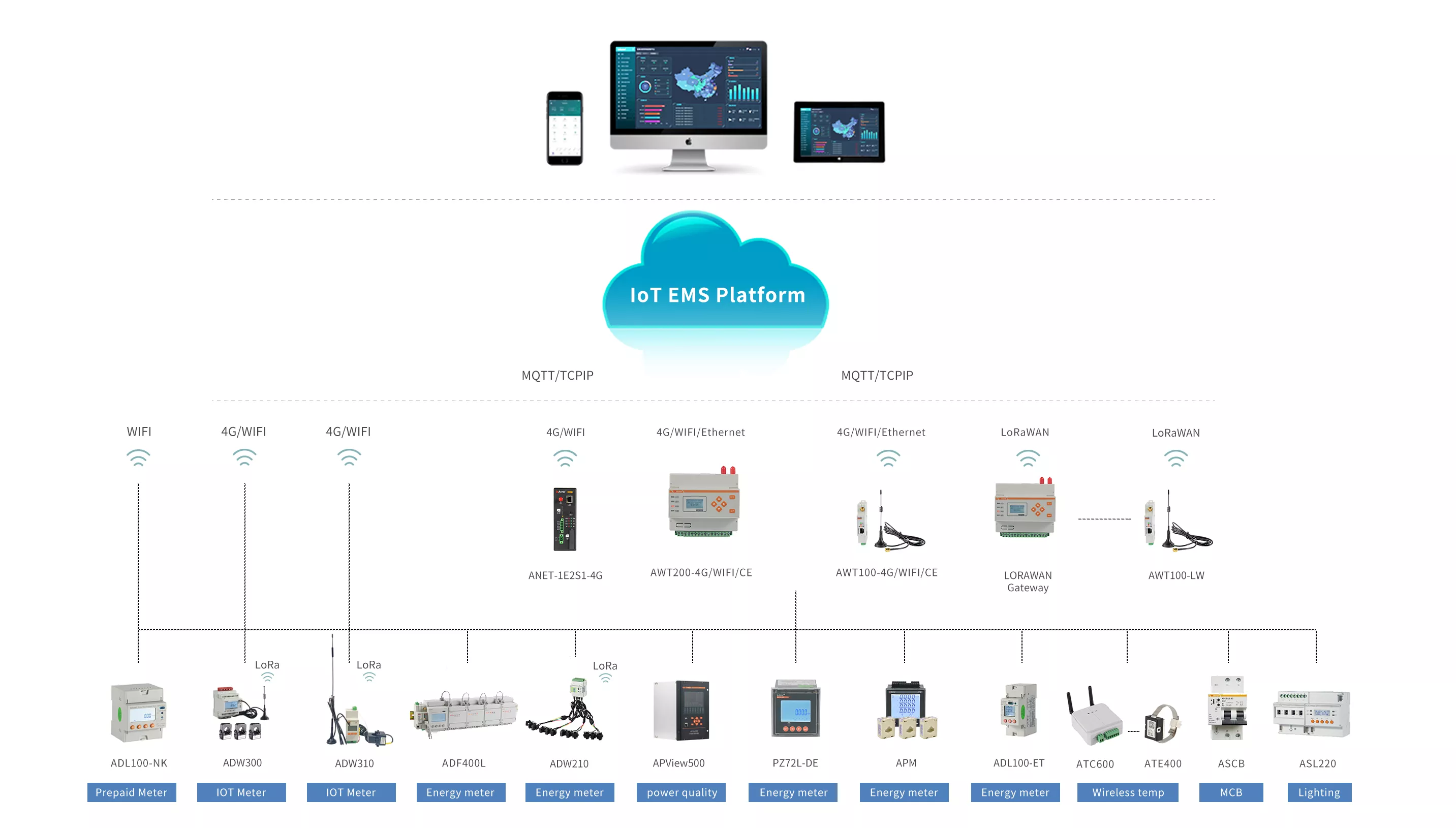

Solution Introduction
Web Platform
Alarm Analysis
Equipment status
Details of electrical parameters
Energy situation
Product recommend
Product Name |
Product Image |
Functions |
 |
● 4 circuits ● 3*220/380V ● 5A 100A 400A 600A with external CT ● RS485(MODBUS-RTU) ● LCD display ● kWh Class 1.0 ● DIN 35 mm |
|
 |

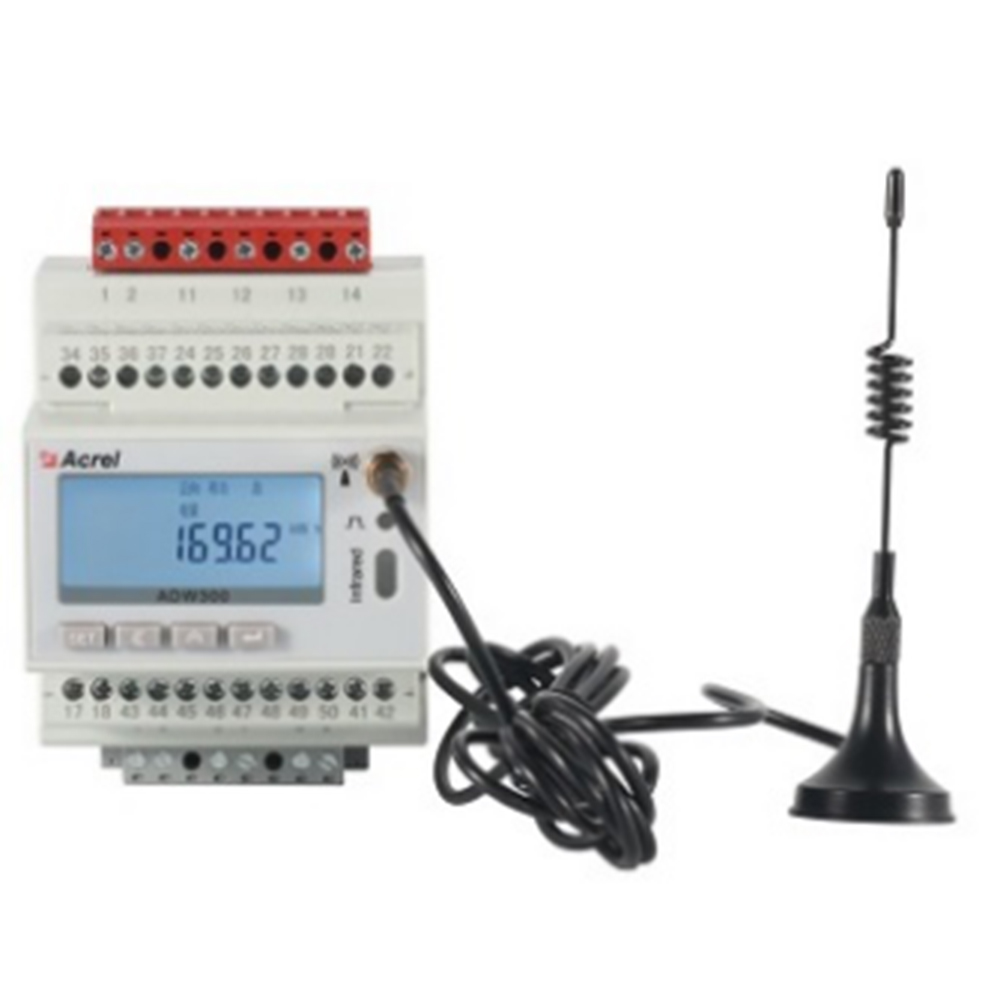

●AC 3×220/380V，3*380/660V, 3×57.7/100V，3×100V,3×380V，3*660V ●3×1(6)A ● RS485(MODBUS-RTU) or 4G/WIFI/LORA ● LCD display ● kWh Class 0.5S (300W Class 1.0) ● DIN 35 mm |
|
 |
● AC220V ● 10(80)A ● Split core open loop CTs ● RS485(MODBUS-RTU) ● LCD display ● RS485(MODBUS-RTU) ● kWh Class 1 ● DIN 35 mm |
|
 |
● AC 3×220/380V，3×380V，3×57.7/100V，3×100V ● 3×1(6)A,3×10(80)A ● RS485(MODBUS-RTU) ● LCD display ● kWh Class 0.5 ● LCD display ● DIN 35 mm |
|
 |

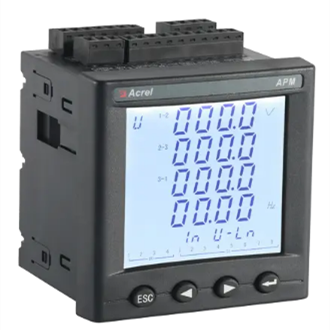

● True RMS Measurements ● THD with 63rd Harmonics ● K-Factor and Crest Factor ● Unbalance & Phase Angles ● Demands and Multi-Tariff energy ● Max/Min Log with Timestamp |
|
 |
● Temperature Data Transmission: 240 ● Communication:RS485 ● Type: C: Terminal mode; Z: Relay mode ● DIN 35 mm |
|
 |
● Wireless transmit; ● Wireless transmission distance, 150 meters; ● Fase sampling frequency,15s; ● CT-powered, more than 5A starting current; ● Widely temperature measuring range, -40℃~125℃. |
|
 |
● DC0-1000V ● Current support 75mV Output of shunt, 0-5V, 0-20mA output of hall ● RS485(Modbus protocol) ● DIN 35 mm |
|
 |

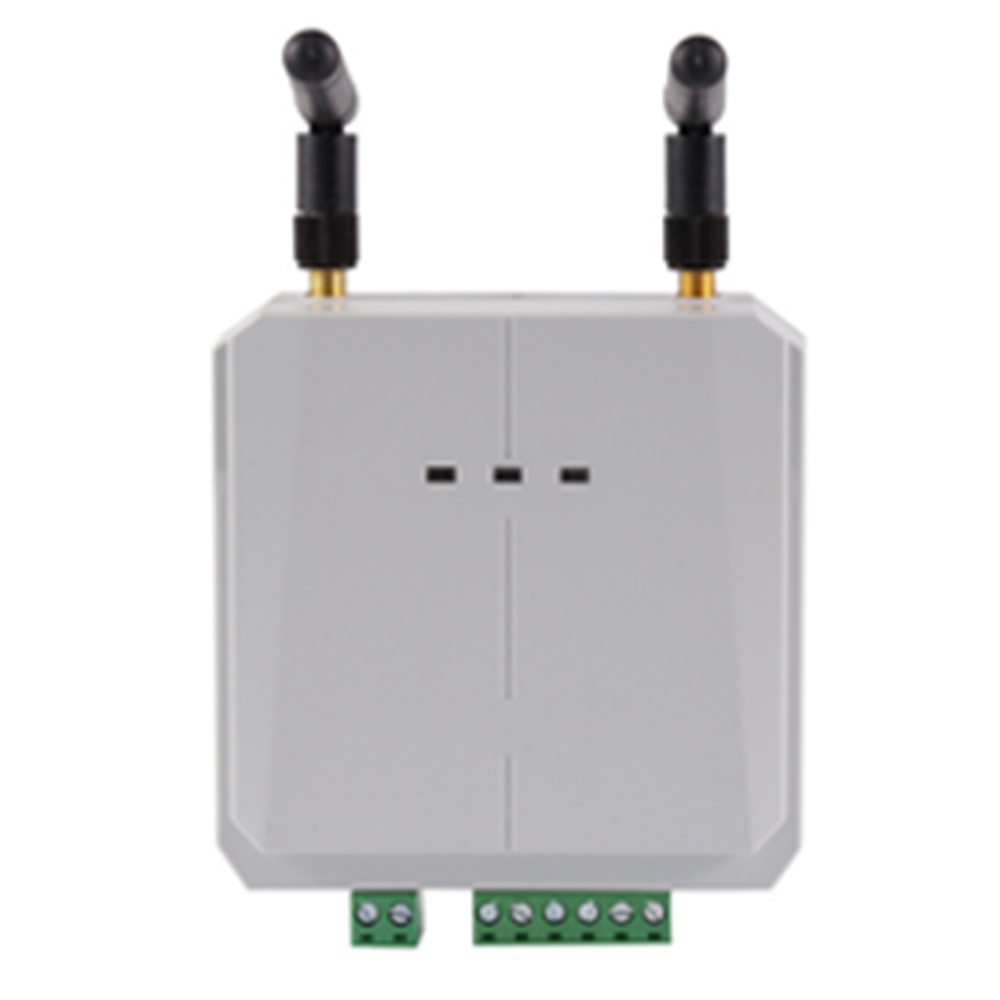

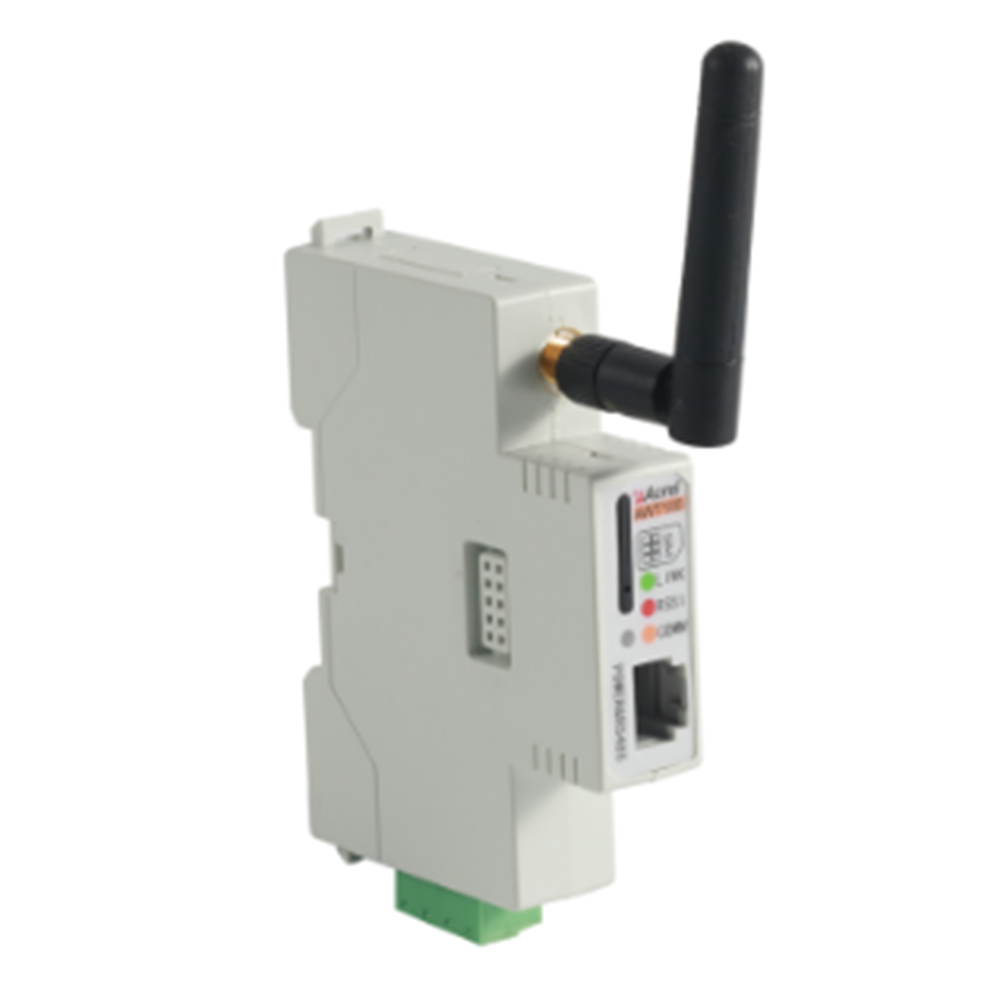

● Downlink:RS485 ● Uplink:4G,WiFi or Ethernet/lorawan 868/ lorawan923 / lora868 |
Related Products
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
