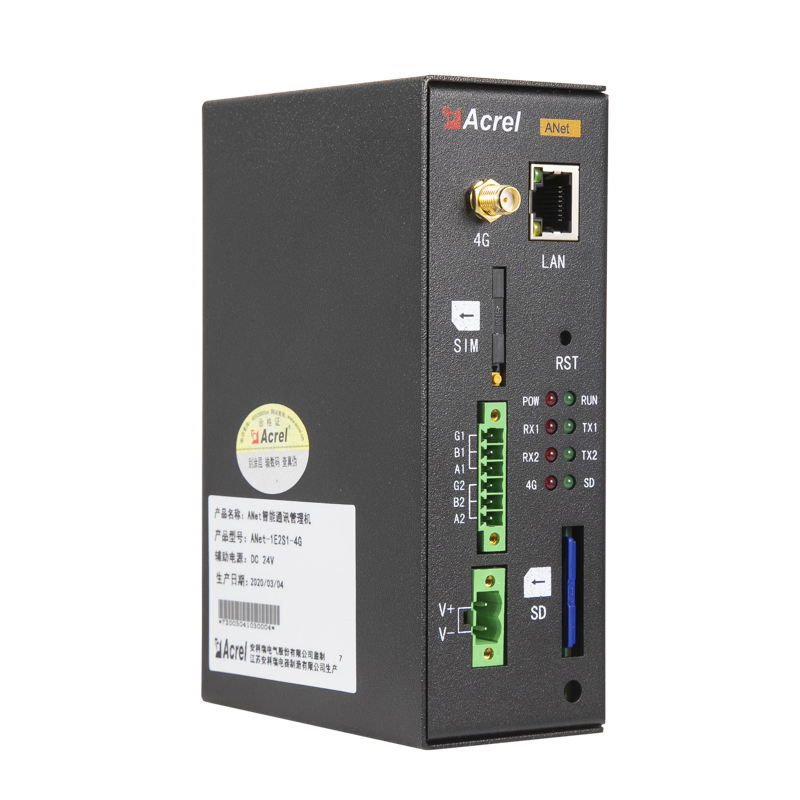

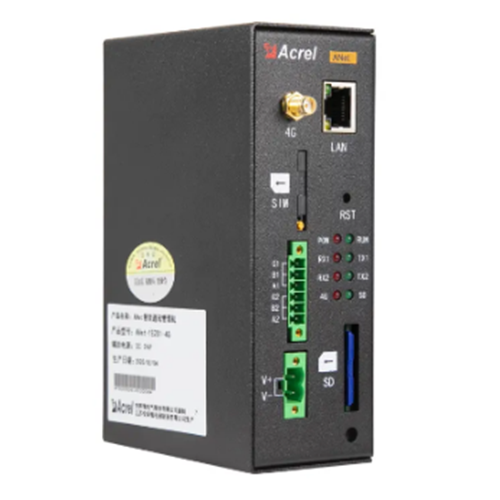

ANet Gateway:
Facilitate later expansion
Strong performance, reduce server pressure
Support protocol enrichment
Multi-platform forwarding
Linkage control
Breakpoint continuingly

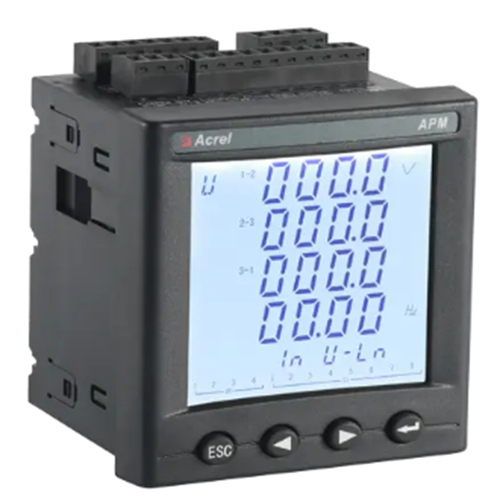

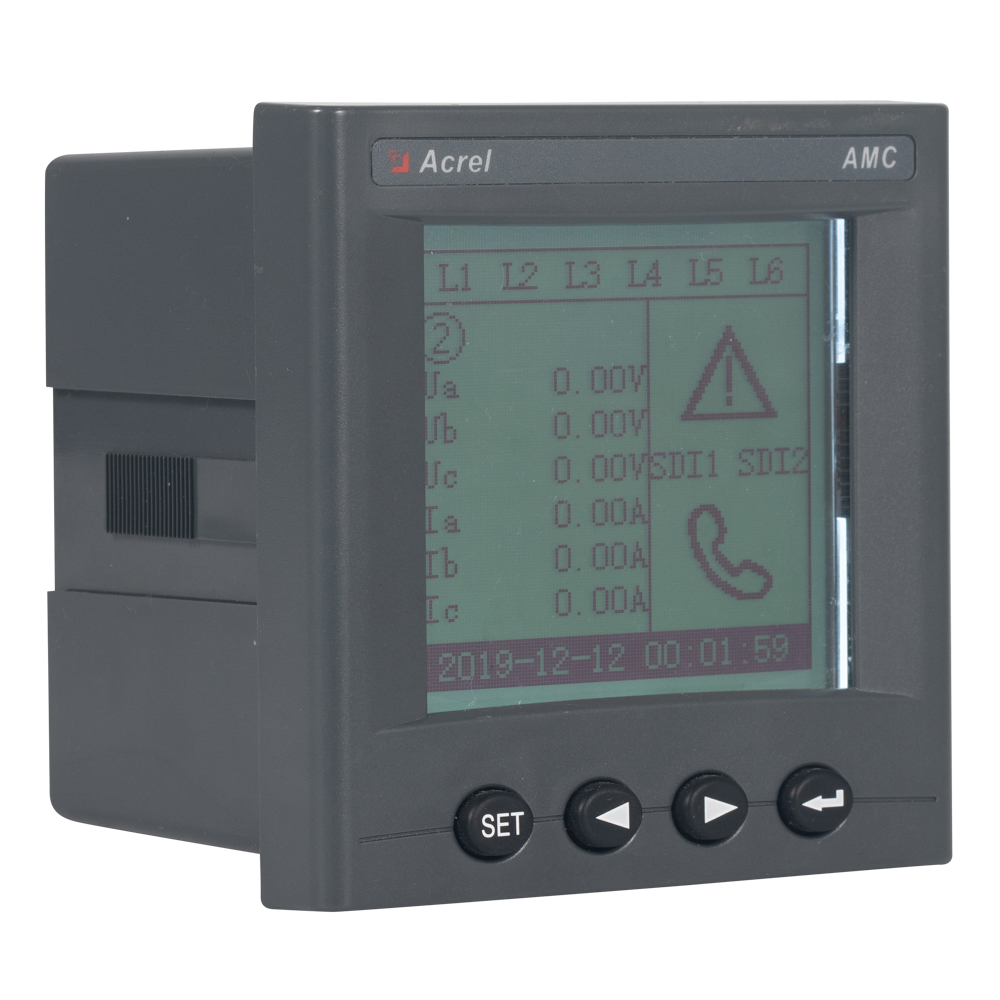

Main Feature:
Real-time monitoring: current, voltage, frequency, power factor, active power, reactive power, apparent power
Electric energy metering: four-quadrant active energy, reactive energy, apparent energy
Pulse output: active and reactive energy pulse output
Demand monitoring: real-time demand, maximum demand for active, reactive, and apparent power
Power quality: voltage, current unbalance, harmonic distortion rate, 2~63 harmonic content rate
Data recording: voltage, current, power maximum, minimum statistics, sequential event recording
Open in and open out: Standard 2-way digital input (optional 8-way), 2-way digital output
Communication: RS485 interface, MODBUS-RTU communication protocol, Ethernet port optional
Display: LCD
Installation method: embedded
Installation location: switch cabinet, power distribution cabinet
Usage: power quality, power metering

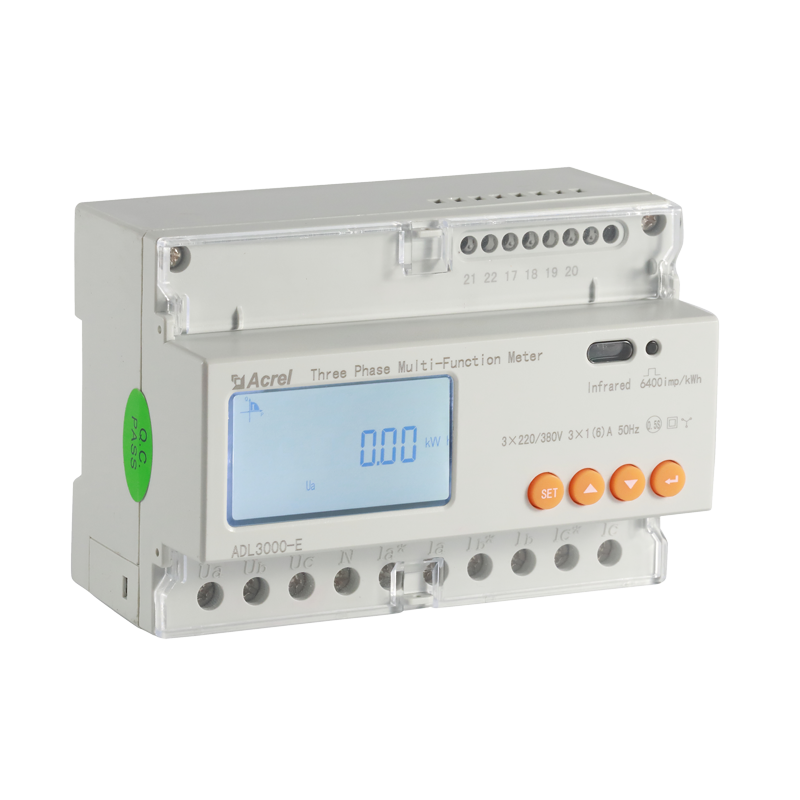

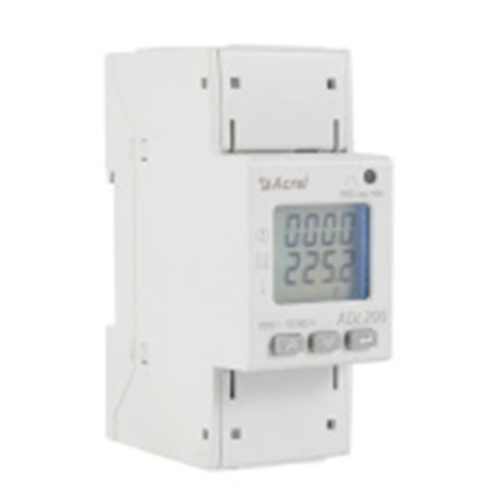

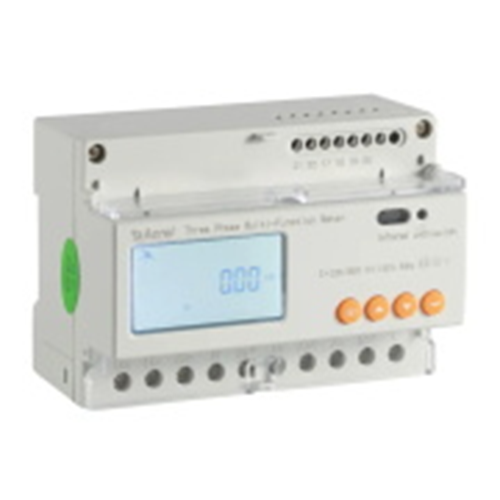

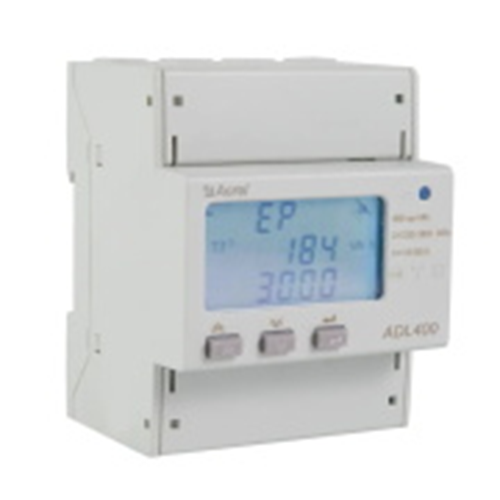

DTSD1352 Din Rail Energy Meter:
This series of products is small in size and can be installed on rails. It can measure electric energy and other electric parameters, and can set parameters such as clock and tariff period. High precision, good reliability, and performance indicators meet the technical requirements of the national standard GB/T17215-2002, GB/T17883-1999 and the power industry standard DL/T614-2007 for electric energy meters.

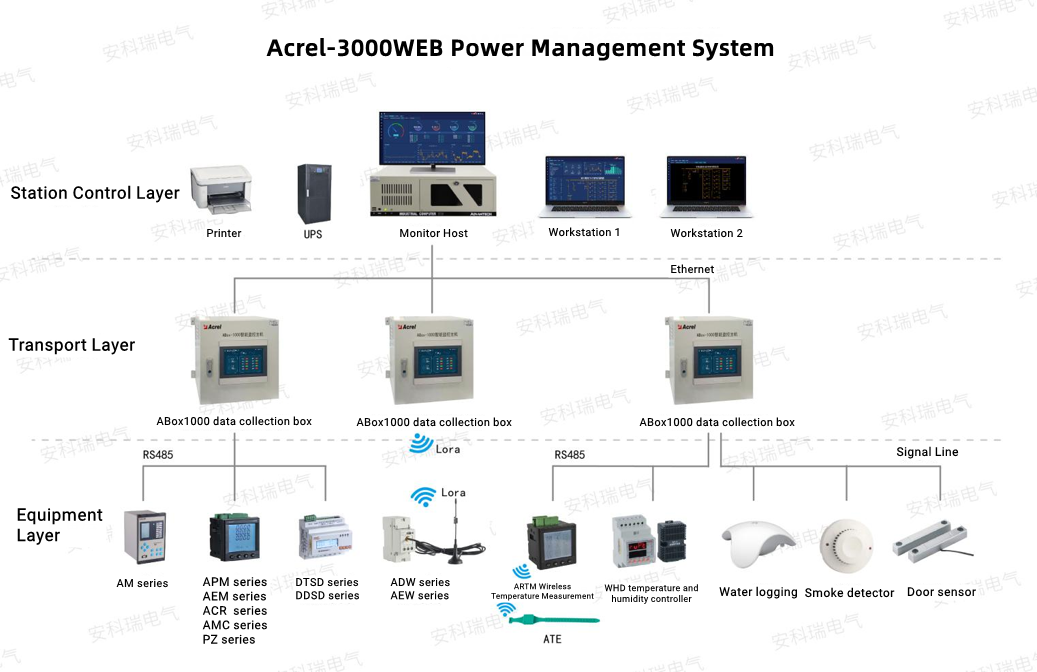

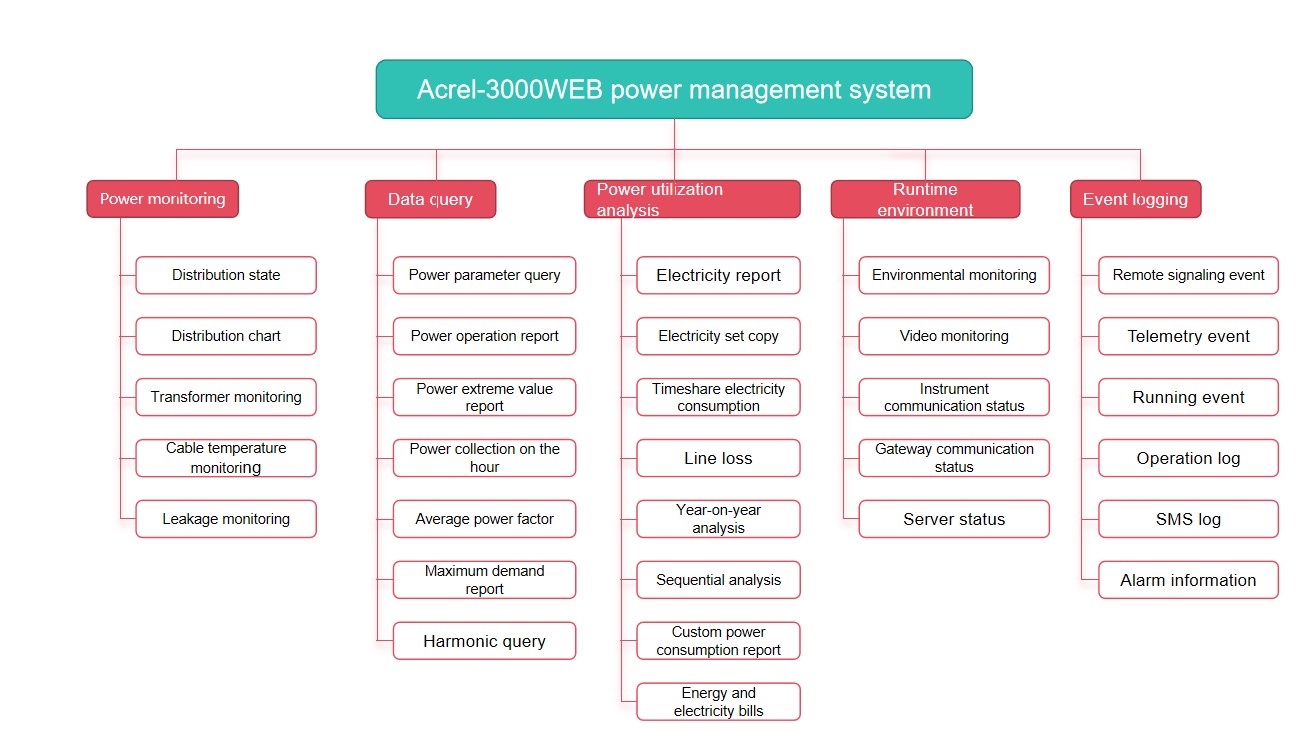

Various real-time monitoring interfaces (such as power transformer and distribution main wiring diagram) can be prepared according to site conditions. Data on the interfaces can be updated in real time to respond to telemetry out-of-limit and telemetry shift.

The system can monitor the power consumption parameters of each power distribution loop, main power supply and distribution equipment, key power consumption equipment and main power consumption area in real time.

The system can realize the remote opening and closing control of circuit breakers and switches, and the operation needs two levels of verification to avoid unauthorized or misoperation.

The system periodically stores all kinds of historical telemetry data such as voltage, current, power, electric energy and harmonics. The data can be queried on any day and displayed in charts and tables. The data can be exported.

It can perform extreme statistics on telemetry data, and calculate the maximum, minimum, average and occurrence time of voltage, current, power and other electrical parameters by day and month. The daily, monthly and annual electricity consumption of each distribution circuit, distribution area and electrical equipment are counted, and the same monthly analysis is made. According to the peak pinggu statistics of electricity and electricity.

Batch grant menu permissions based on roles, which can allocate accessible substations according to users, so that users can only access the data of specified substations.

Data can be forwarded to third-party systems through modbus-TCP, 104, MQTT and other protocols.

Support fluorite cloud, Le Orange Cloud video access (through the Internet)

Hikvision camera can be directly connected to the platform (through the Intranet)

Both can be connected to the camera or hard disk video recorder, camera live broadcast, playback and control.
