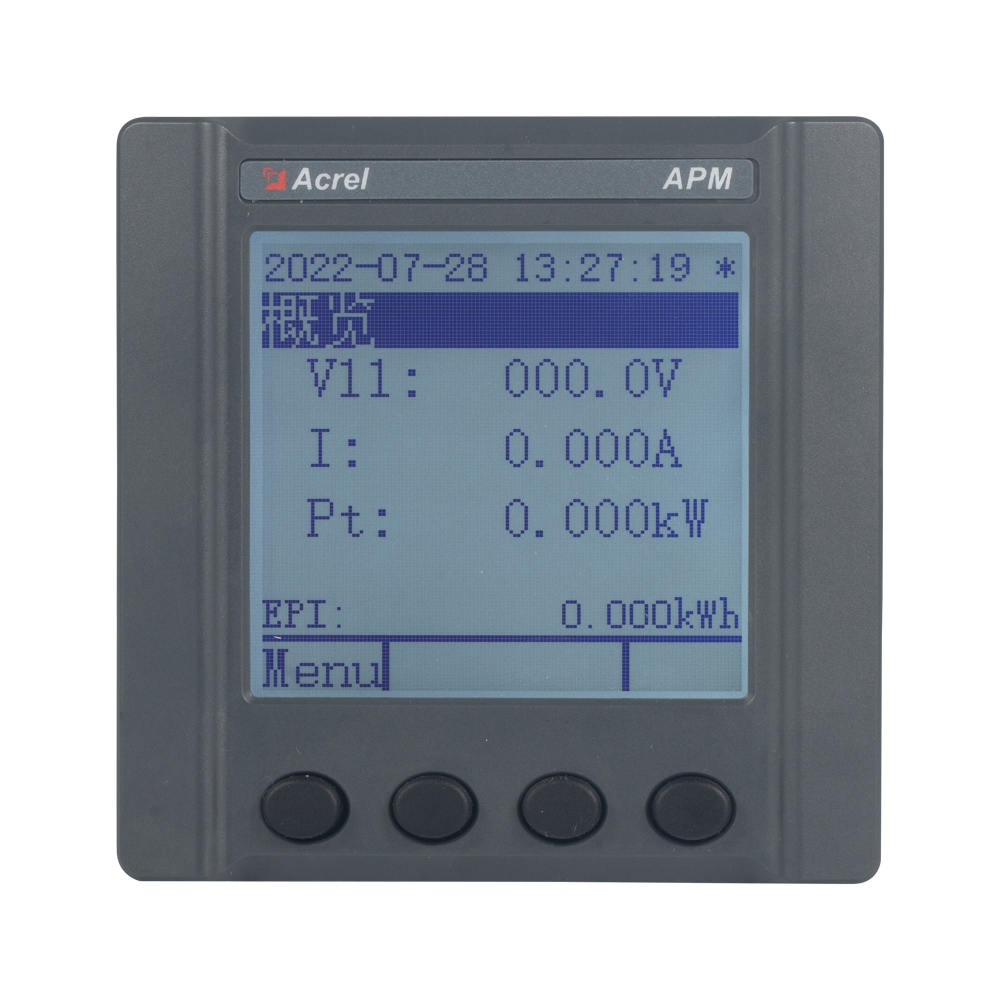

APM520 Power Quality Monitoring Meter
● Full Power Measurement
● Power Quality Analysis
● Leakage Current Measurement (Optional)
● Support Modbus-RTU/TCP Protocol
● Accuracy: 0.5s
●Panel size (L×W): 96*96mm; Cut-out size (L×W): 88*8mm
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Characteristic
Product Description
APM5 series network power meter (hereinafter referred to as the meter) is designed according to IEC international standards, with full power measurement, power statistics, power quality analysis (including harmonics, interharmonics, flicker), fault recording function (including voltage temporary rise and fall interrupt, inrush current and other records), event recording function and network communication and other functions. It is mainly used for comprehensive monitoring of power supply quality in the power grid.

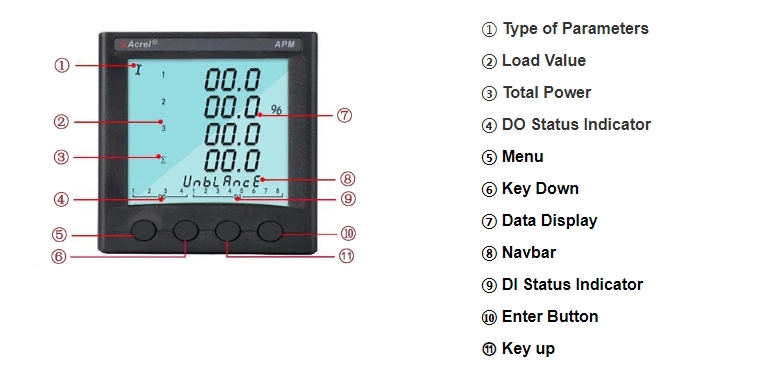

Panel Overview
Parameter
Wiring

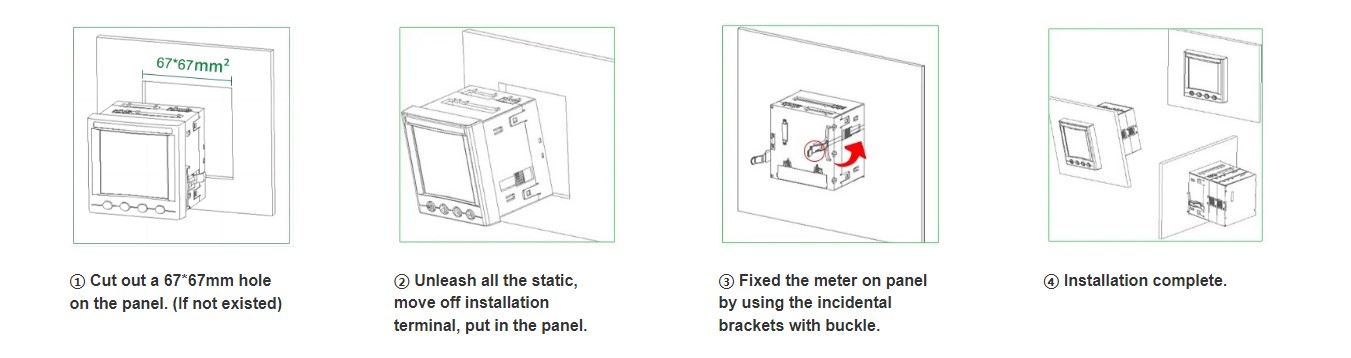

Installation

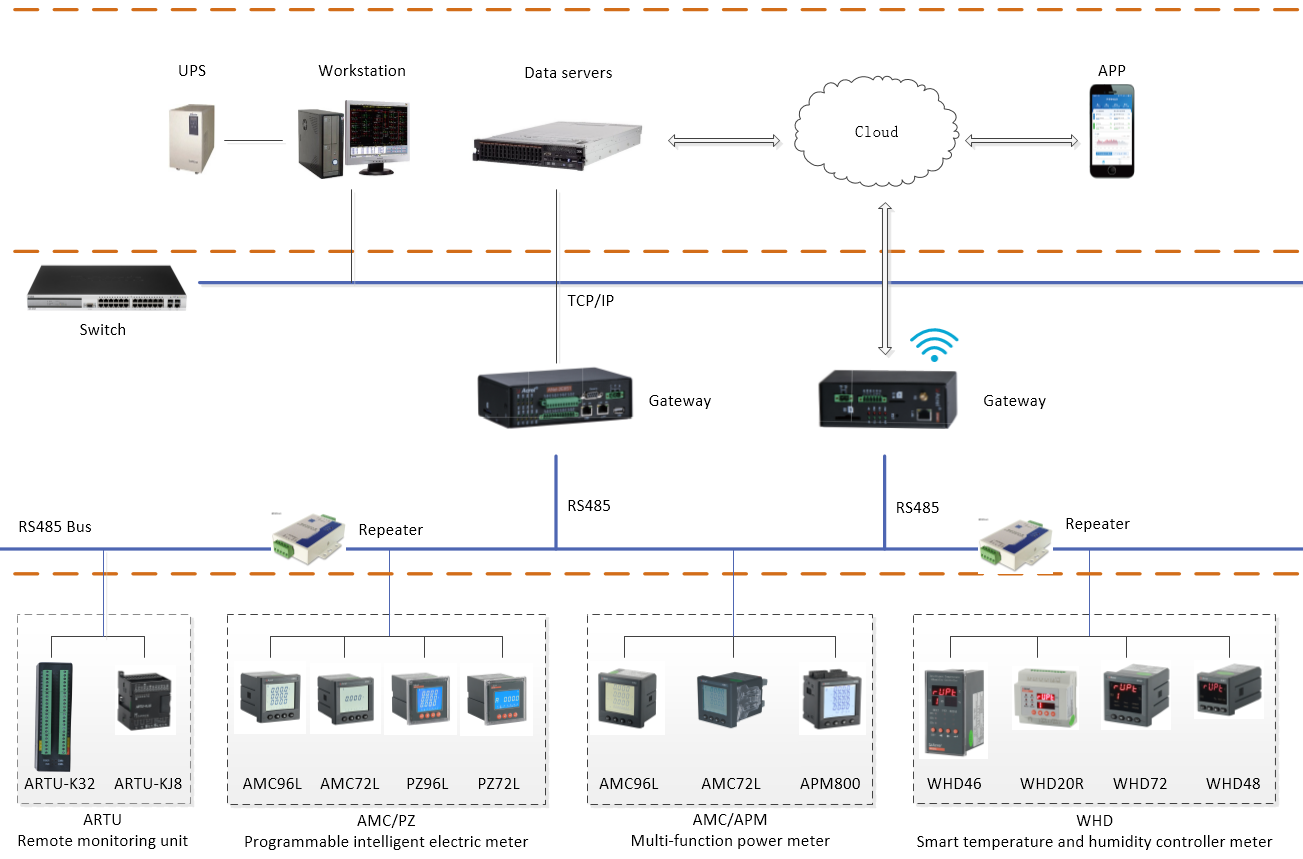

Network
Application
Download
-
APM5** Series Manual
