General Technical Spec
- Measurement：AC
- Primary Current：5~800A AC
- Accuracy Class：0.5
- Rated Voltage：660V AC
- Rated Frequency：50~60Hz

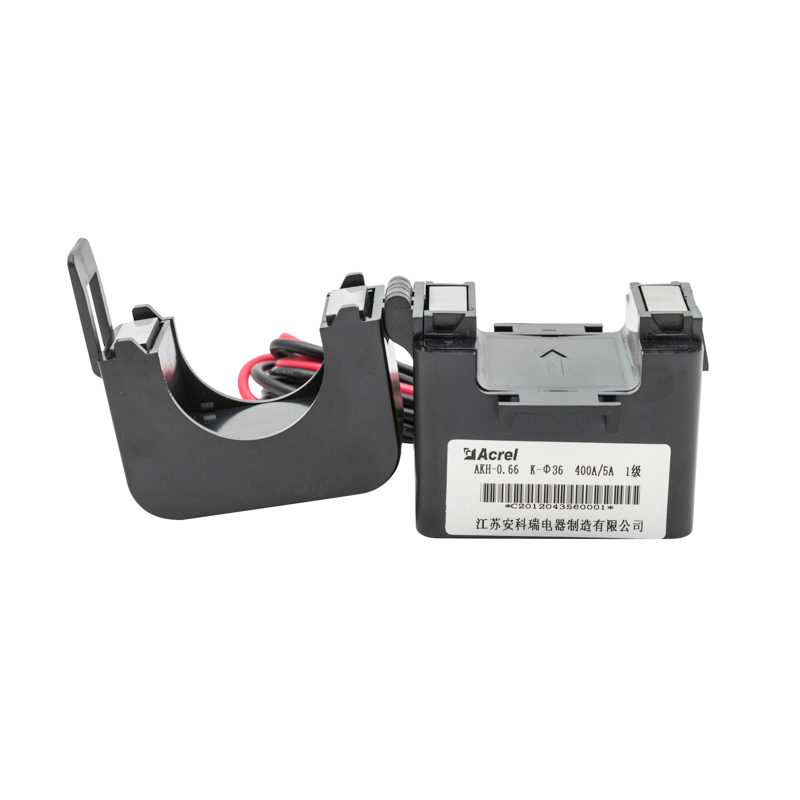

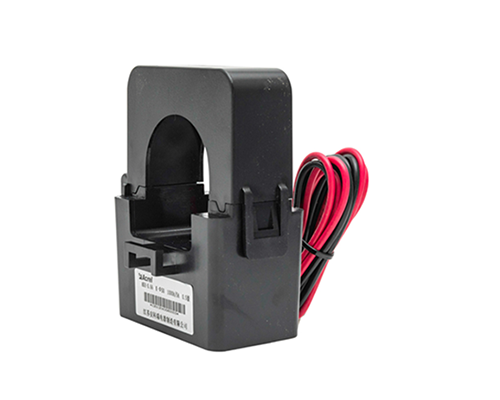

Split Core Current Transformer AKH-0.66/K-φ36
- • Measurement:Alternating Current (AC)
- • Accuracy: Class 0.5
- • Primary Current Input:100~600A AC
- • Rated Voltage:660V AC
- • Rated Frequency:50~60Hz
- • Installtion:Clamp-on (installed on Cable)
- • Loop Count:1 Loop
- • Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Characteristic

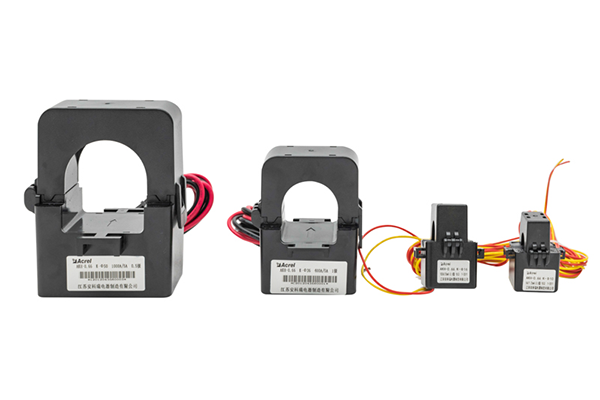

Series Product Overview
Working Environment
- Temperature: -30℃~+70℃
- Altitute :≤3000m
- Humidity：≤90%
- Withstand：3000V/1min 50Hz

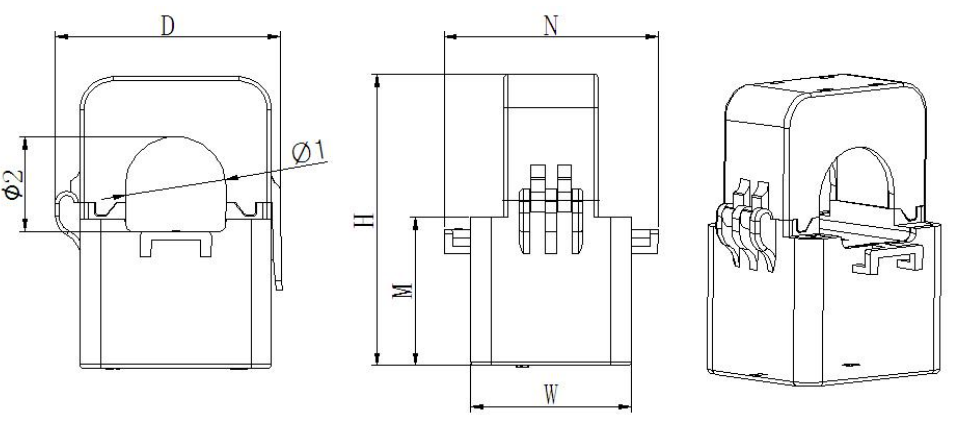

Dimension
|
Size（mm) |
Outline size |
Through size |
Tolerance |
|||||
|
W |
H |
D |
M |
N |
Φ1 |
Φ2 |
||
|
K-Φ10 |
27 |
40 |
26 |
24 |
36 |
10 |
9 |
±1 |
|
K-Φ16 |
31 |
50 |
29 |
28 |
42 |
16 |
17 |
|
|
K-Φ24 |
39 |
71 |
46 |
36 |
52 |
24 |
23.5 |
|
|
K-Φ36 |
42.5 |
82 |
58 |
40 |
56 |
33.5 |
35 |
|
|
K-Φ50 |
46.5 |
110 |
90 |
54 |
66.5 |
47 |
52 |
|

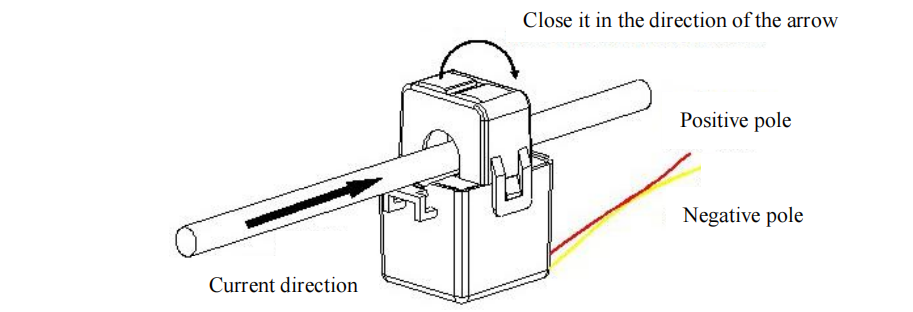

Installation
Product Applications
Parameters
|
Specification |
Rated current ratio (A) |
Precision degree |
Straight- through tums |
Max. cable outer diameter (mm) |
|
0.5 |
||||
|
K-Φ10 |
5A/1.25mA |
10 |
1 |
Φ10 |
|
(10-20)A/5mA |
10 |
|||
|
(40-60)A/20mA |
10 |
|||
|
K-Φ16 |
(20-50)A/10mA |
10 |
Φ16 |
|
|
(40-100)A/20mA |
10 |
|||
|
100A/40mA |
10 |
|||
|
K-Φ24 |
(60-200)A/20mA |
10 |
Φ24 |
|
|
(100-250)A/50mA |
10 |
|||
|
400A/100mA |
10 |
|||
|
K-Φ36 |
(100-200)A/10mA |
10 |
Φ36 |
|
|
(200-400)A/20mA |
10 |
|||
|
(300-600)A/100mA |
10 |
|||
|
400A/40mA |
10 |
|||
|
600A/75mA |
10 |
|||
|
K-Φ50 |
(600-800)A/100mA |
10 |
Φ50 |
Download
-
CE Certificate
-
CE Certificate
-
CE Certificate
-
AKH-0.66K-φ Series Manual
