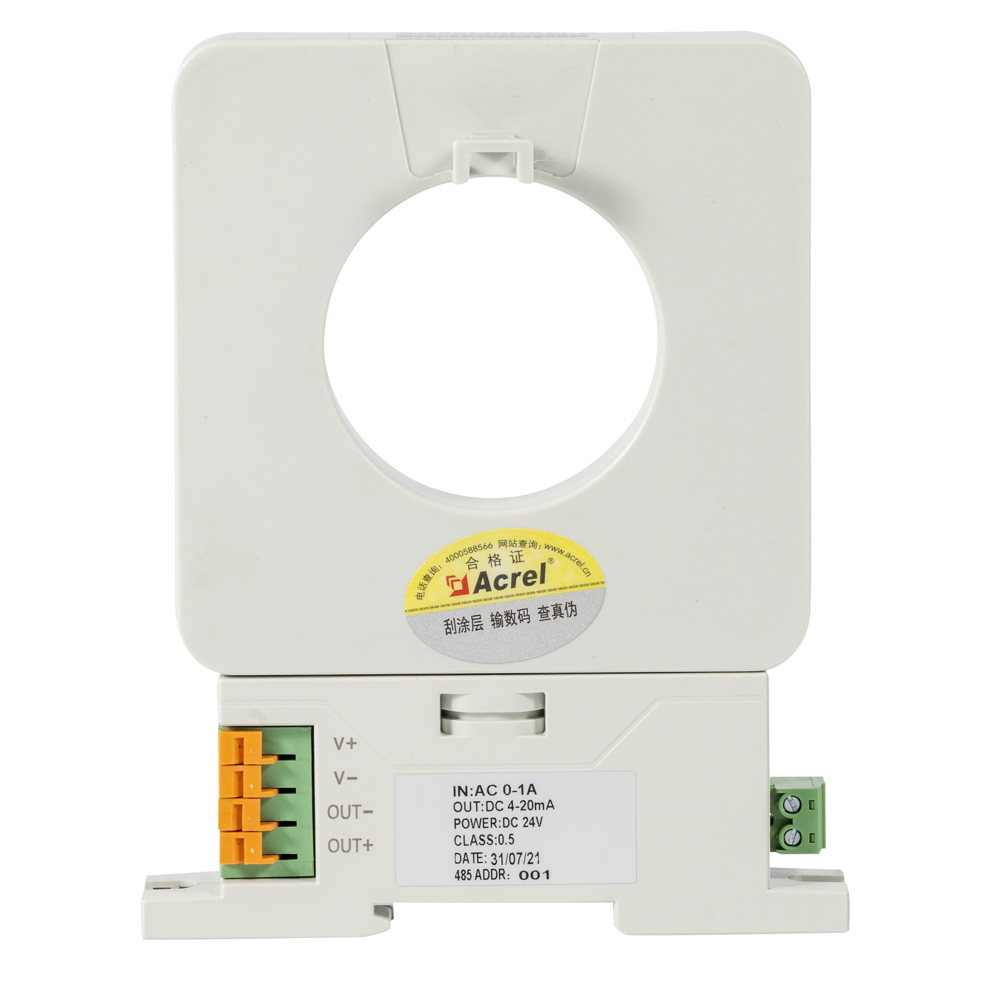

BA50L(II)-AI/V Leakage Current Sensor
- • Input:0~(0.1~1)A AC
- • Output: 4~20mAV/0~20mA DC
- • Power Supply:12V/24V DC
- • Applicaiton:Paired with PLC for Industrial Automation
- • Accuracy: Class 0.5
- • Response Time:≤350ms
- • Installation:35mm DIN Rail/Screw fixed
- • Standard&Certificate: CE; TüV
BA50L(Ⅱ)-AI is an AC residual current transformer, which mainly detects the leakage current of the electrical system, can grasp the status of electrical circuits and equipment at any time, and prevent fires and other accidents caused by leakage.
Parameter
| Input |
AI——BA20(II)-AI: AC 0~(0.5-200)A BA50(II)-AI: AC 0~(60-600)A BA50L(II)-AI: AC 0~(0.1-1)A |
| Output | I——Direct Current e.g. 4-20mA ; V——Direct Current Voltage e.g. DC0-5V |
| Power Supply | DC12V or DC24V |
| Measuring Aperture | 20-φ20mm, 50-φ50mm |
| Communication | RS485 Modbus-RTU |
Dimension
Installation
Application
Package
Function Description
| Input |
AI——BA20(II)-AI: AC 0~(0.5-200)A BA50(II)-AI: AC 0~(60-600)A BA50L(II)-AI: AC 0~(0.1-1)A |
| Output | I——Direct Current e.g. 4-20mA ; V——Direct Current Voltage e.g. DC0-5V |
| Power Supply | DC12V or DC24V |
| Measuring Aperture | 20-φ20mm, 50-φ50mm |
| Communication | RS485 Modbus-RTU |
-
CE Certificate
-
BA Current Transducer Manual
