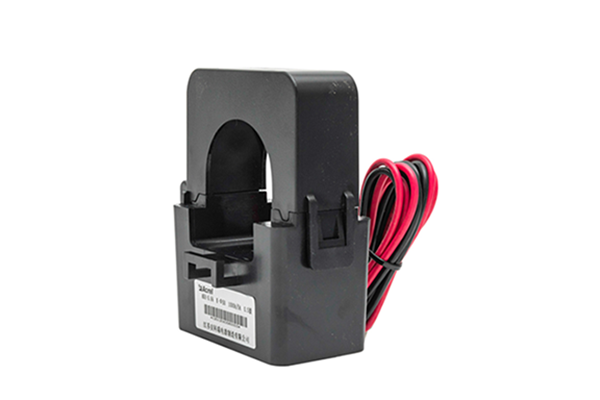

Split Core Current Transformer AKH-0.66/K-φ10
Split Core Current Transformer AKH-0.66/K-φ10
Split Core Current Transformer AKH-0.66/K-φ10
Split Core Current Transformer AKH-0.66/K-φ10

Split Core Current Transformer AKH-0.66/K-φ10



      • • Measurement:Alternating Current (AC)



    • • Accuracy: Class 0.5



    • • Primary Current Input: 5~60A AC



    • • Rated Voltage:660V AC



    • • Rated Frequency:50~60Hz



    • • Installtion:Clamp-on (installed on Cable)



    • • Loop Count:1 Loop



  • • Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE

8618702112007

mabel@acrel-electric.com

8618702112007

Split Core Current Transformer AKH-0.66/K-φ10
Split Core Current Transformer AKH-0.66/K-φ10
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Characteristic

Series Product Overview


General Technical Spec

Measurement：AC
Primary Current：5~800A AC
Accuracy Class：0.5
Rated Voltage：660V AC
Rated Frequency：50~60Hz

Working Environment

Temperature: -30℃~+70℃
Altitute :≤3000m
Humidity：≤90%
Withstand：3000V/1min 50Hz

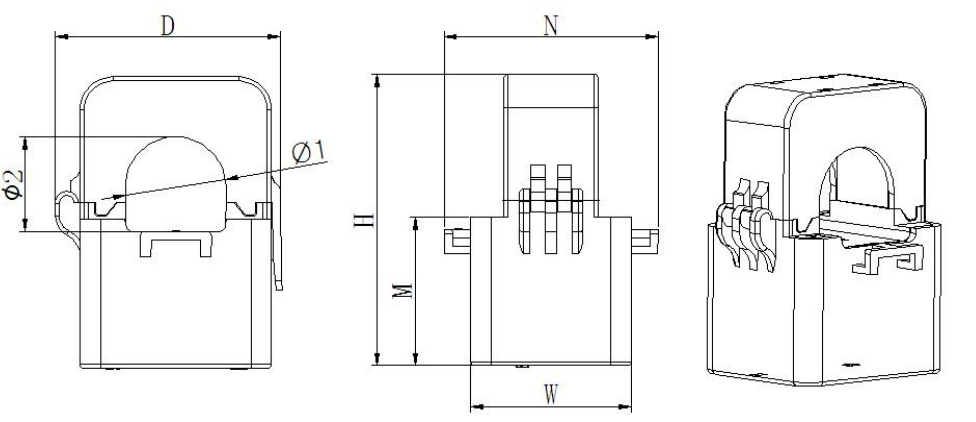

Dimension



Size（mm)
Type

Outline size

Through size

Tolerance

W

H

D

M

N

Φ1

Φ2

K-Φ10

27

40

26

24

36

10

9

±1

K-Φ16

31

50

29

28

42

16

17

K-Φ24

39

71

46

36

52

24

23.5

K-Φ36

42.5

82

58

40

56

33.5

35

K-Φ50

46.5

110

90

54

66.5

47

52

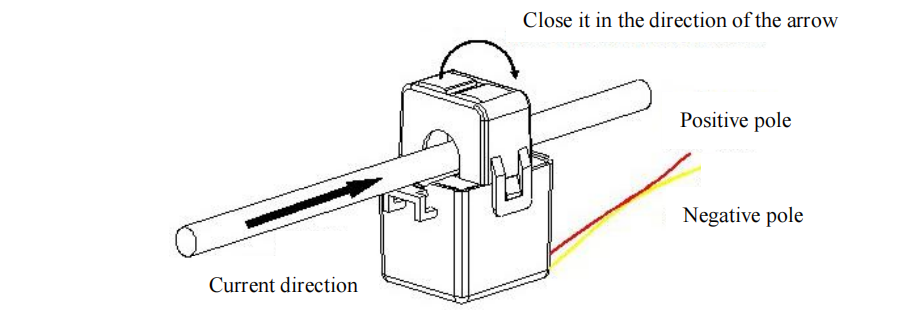

Installation









Product Applications



Parameters

Specification

Rated current ratio (A)

Precision degree

Straight- through tums

Max. cable outer diameter (mm)

0.5

K-Φ10

5A/1.25mA



10

1

Φ10

(10-20)A/5mA



10

(40-60)A/20mA



10

K-Φ16

(20-50)A/10mA



10

Φ16

(40-100)A/20mA



10

100A/40mA



10

K-Φ24

(60-200)A/20mA



10

Φ24

(100-250)A/50mA



10

400A/100mA



10

K-Φ36

(100-200)A/10mA



10

Φ36

(200-400)A/20mA



10

(300-600)A/100mA



10

400A/40mA



10

600A/75mA



10

K-Φ50

(600-800)A/100mA



10

Φ50
Download
  • CE Certificate
  • CE Certificate
  • CE Certificate
  • AKH-0.66K-φ Series Manual
  •
  •
  •
  •
