Smart circuit breaker
- Real-time monitoring of voltage, current, power, power, temperature and leakage and other parameters
- With overvoltage, undervoltage, overload, short circuit, overcurrent, ultra-moderate leakage and so on
- Timing control and other control functions
- RS-485 (MODBUS)

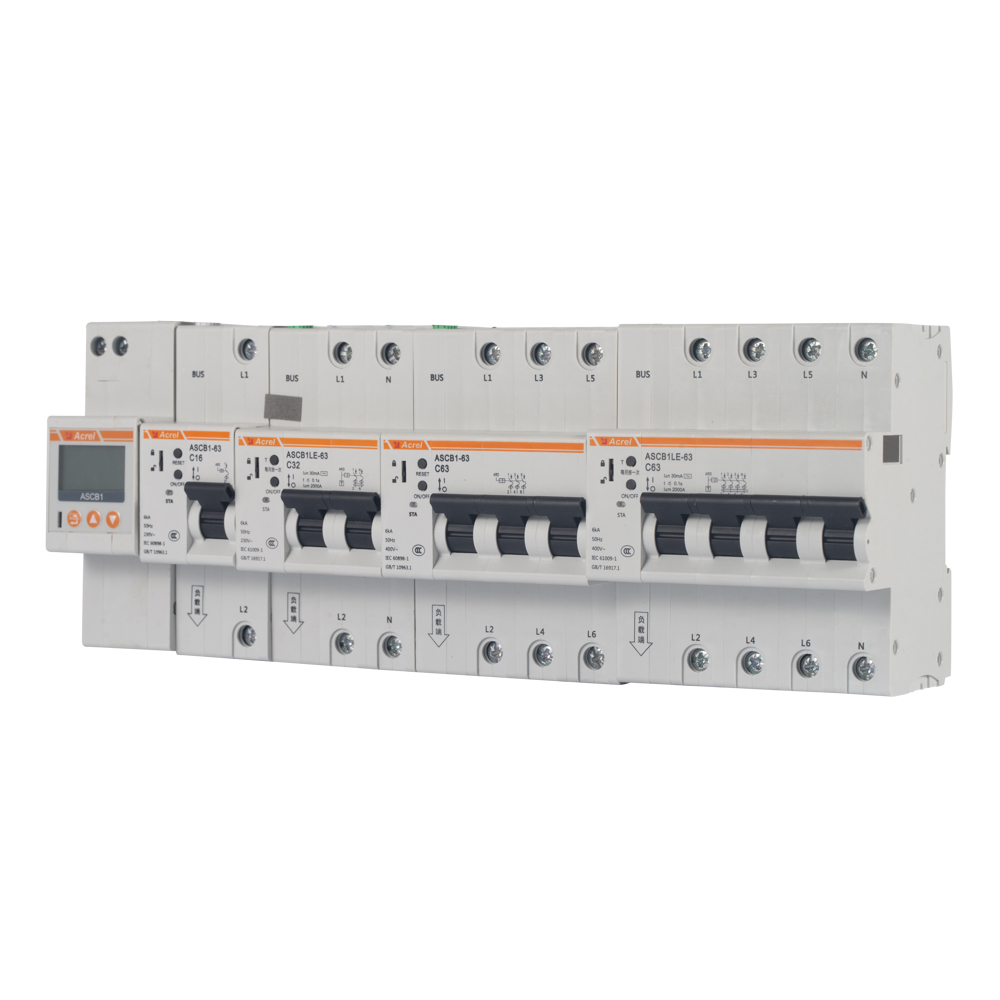

ASCB 1 series of smart micro circuit breaker is new electricity products of Acrel Co., Ltd, the product of smart micro circuit breaker and smart gateway two parts, can be used for the key electrical factors of electrical circuit, such as voltage, current, power, temperature, leakage, energy consumption, real-time monitoring, with remote control, warning, short circuit protection, power metering statistics, fault location, and other functions, applied to indoor buildings and similar places of industrial, commercial, civil construction and infrastructure in areas such as low-voltage terminal distribution network.
Parameter
|
symsymbol bol |
explain |
|
Product code name: ASCB |
Anbranch smart circuit breaker |
|
Development code: 1 |
The first generation of products |
|
Product performance: No |
Represents a small circuit breaker |
|
Shell frame level: 63 |
Represents the maximum rated current under the housing product is 63A |
|
Unbuckle curve |
Type C:> 5-10 times short circuit protection default 7 times Type D:> 10-20 x short circuit protection default 14 x |
|
rated current |
6A,10A,16A,20A,25A,32A,40A,50A,63A This parameter is the maximum current of the circuit breaker operating normally |
|
modulus |
1 / 2 / 3 / 4P is optional 1P: single phase, neutral line (installation space 2P) 2P: single phase, neutral line protection protection (installation space 3P) 3P: three phase, neutral line (installation space 4P) 4P: three-phase, neutral line (installation space 5P) |
Wiring and Installation

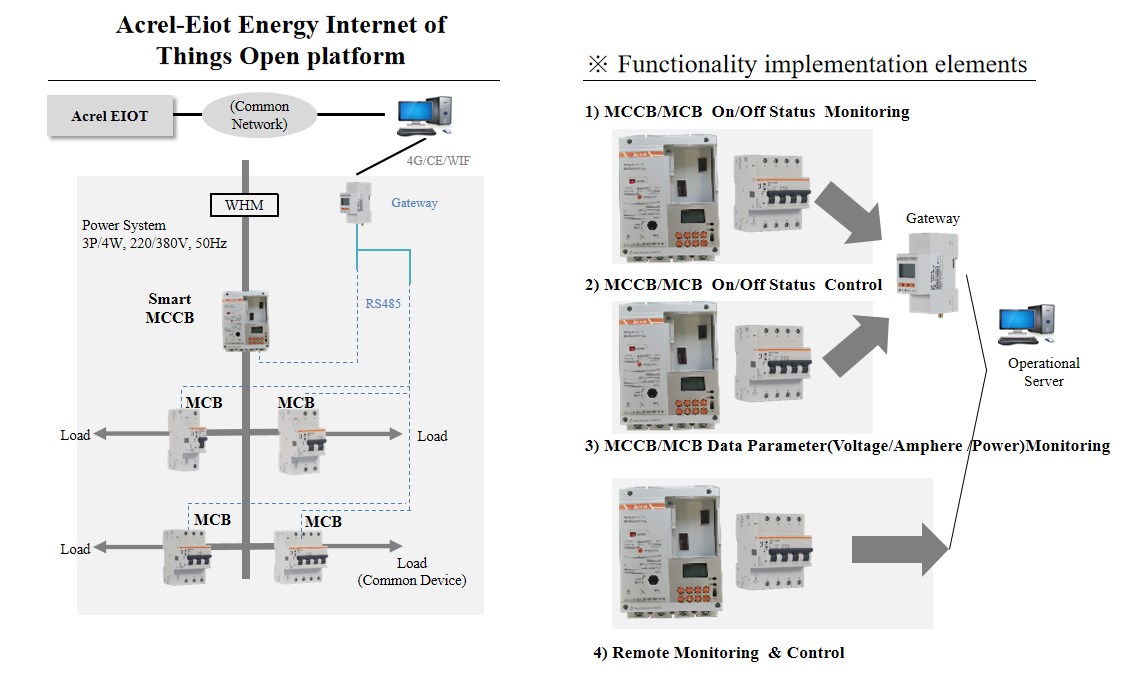

Example diagram of smart micro circuit breaker and smart gateway wiring
Each type of circuit breakers can be installed in any combination, and one gateway can connect up to 16 circuit breakers.
The gateway and circuit breaker use 4 PIN connection line hand in hand, 4 cores are 12V respectively, power supply and 485 communication line, circuit breaker alone use requires 12V power supply
Selection
|
model |
function |
|
ASCB1-1P |
Real-time monitoring of single-phase voltage, current, power, electric energy, temperature and other parameters |
|
ASCB1-2P |
Real-time monitoring of single-phase voltage, current, power, electric energy, temperature and other parameters |
|
ASCB1-3P |
Real-time monitoring of the three-phase voltage, current, power, electric energy, temperature and other parameters |
|
ASCB1-4P |
Real-time monitoring of the three-phase voltage, current, power, electric energy, temperature and other parameters |
|
ASCB1LE-2P |
Real-time monitoring of single-phase voltage, current, power, electric energy, temperature, leakage and other parameters |
|
ASCB1LE-4P |
Real-time monitoring of three-phase voltage, current, power, electric energy, temperature, leakage and other parameters |
|
ASCB1-MS-4G/CE/WF |
16 microbreak collection, 4G, Wifi, Ethernet interface, used with EIOT |
Network
Application
