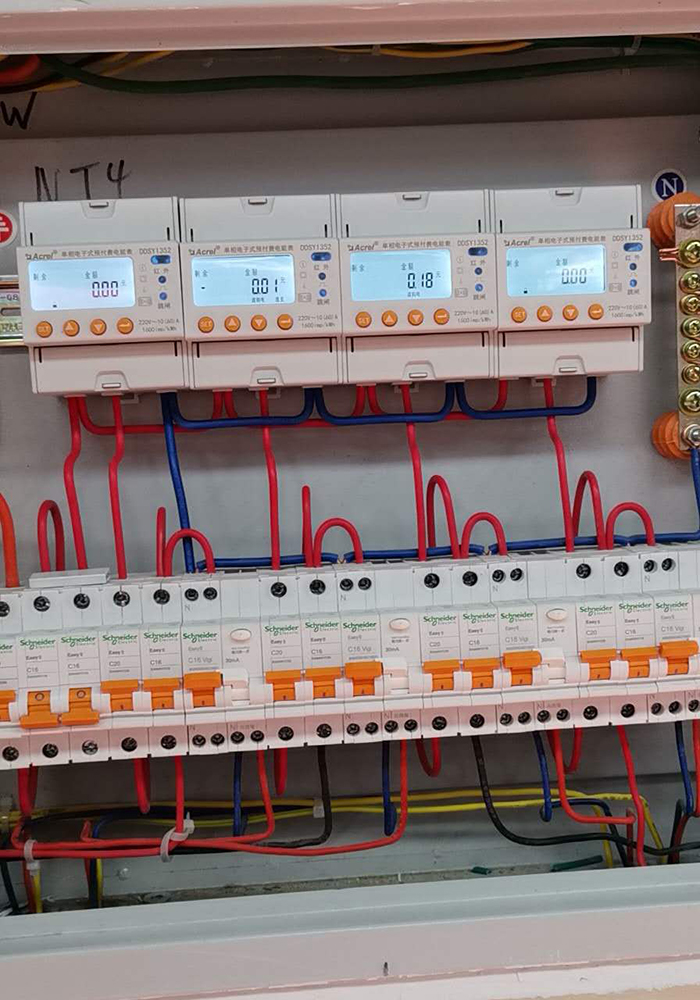

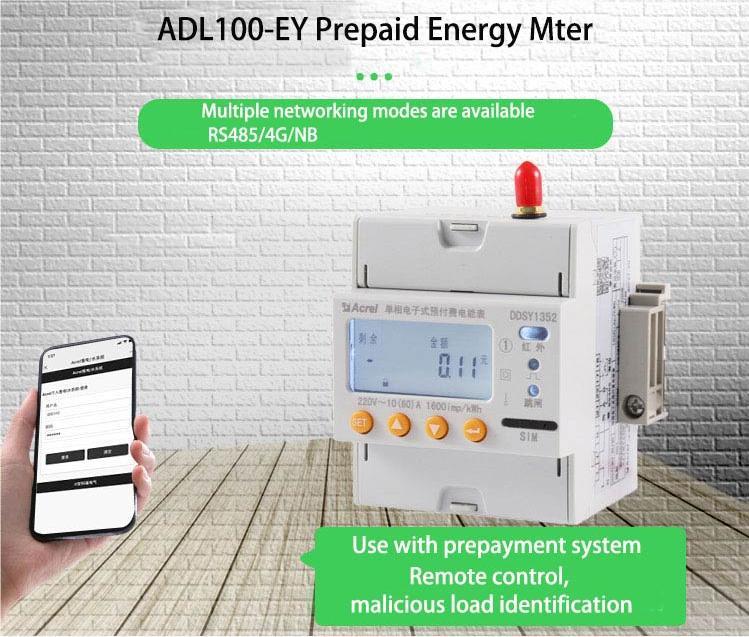

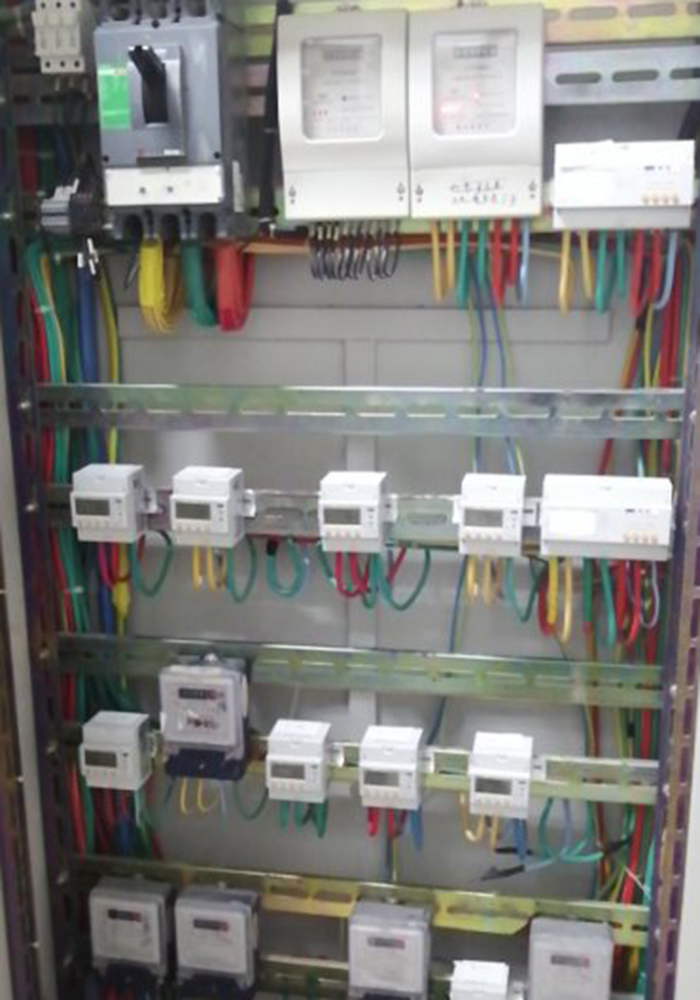

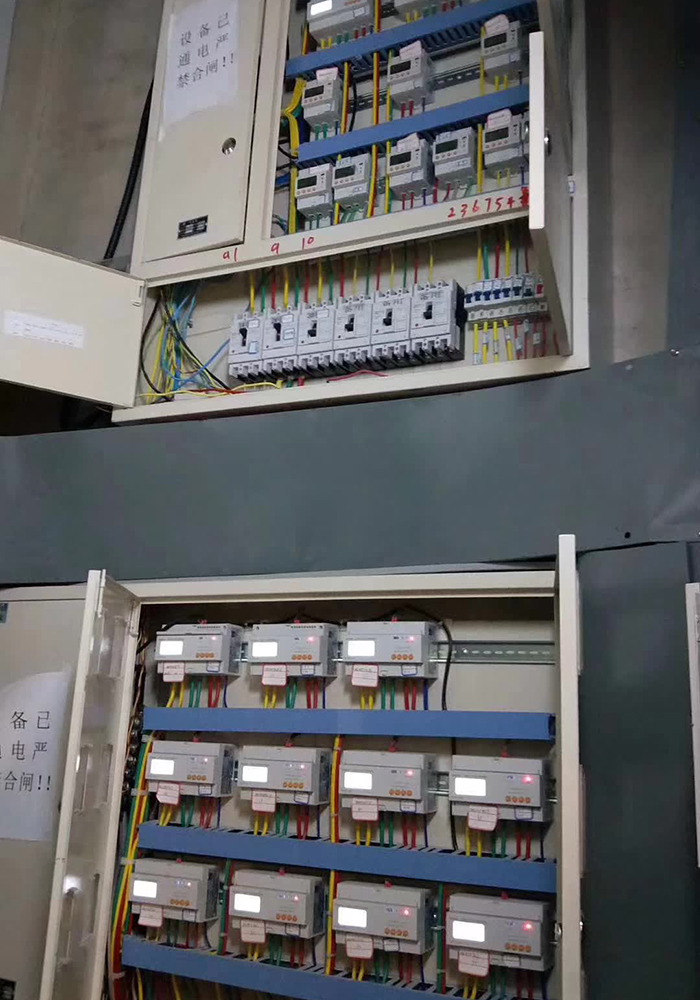

Single-phase Prepayment Energy Meter ADL100-EY

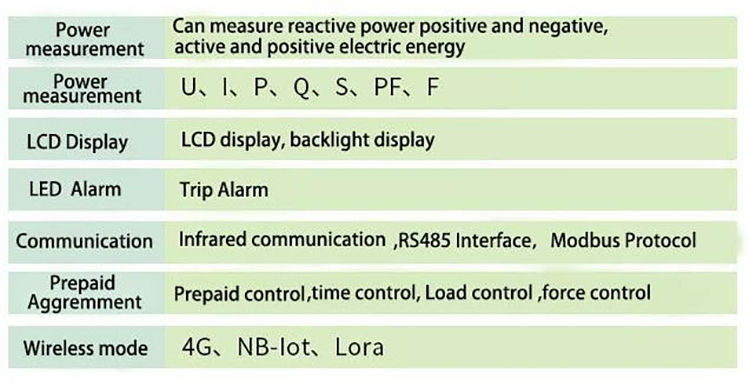

● Application: Prepaid&Postpaid (See about Acrel Prepaid Solution)
● Measurement: 1-phase kWh, kVarh, Active Power, Reactive Power, Current, Voltage and etc
● Rated Voltage: 220~264Vac L-N & 45~65Hz
● Rated Current: 10(60)A AC (via direct connect)
● Communication: RS485 (MODBUS-RTU); Infrared
● Auto Control: Built-in Holding Relay for Switch On-off Control
● Multi-rate/tariff: 4 Tariff Rates and etc
● Standard&Certificate: CE

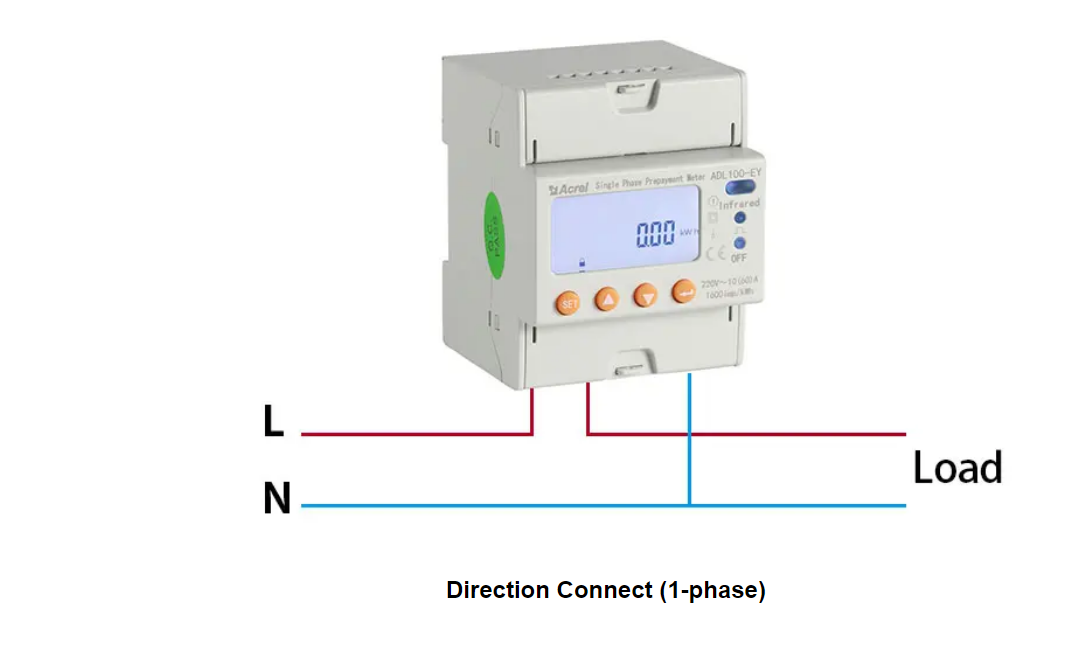

Direct connect
Connect Via CT
|
Connection mode |
Shielded twisted pair conductors |
||
|
MODBUS-RTU |
|||
|
Protoco |
|||
|
Technical parameter |
ADL100-EY |
ADL300-EY |
|
|
Voltage |
Reference voltage |
220V |
3×220/380V |
|
Reference frequency |
50Hz |
||
|
Consumption |
<4VA (Each phase) |
||
|
Current |
Input current |
10(60)A |
1(6)A ,10(80)A |
|
Starting current |
Connect directly: 0.004 Ib, connect via CT: 0.002In |
||
|
Consumption |
<4VA |
||
|
Measurement performance |
Accuracy of measuring |
1 Class |
0.5s Class |
|
Clock accuracy |
Error ≤0.5s/d |
||
|
Active pulse |
Pulse width |
80ms±20ms |
|
|
Pulse constant |
1600imp/kWh |
6400imp/kWh,400 imp/kWh |
|
|
Communication |
Interface |
RS485(A+、B-) |
|
|
|
ADL100-EY |
ADL300-EY |
|

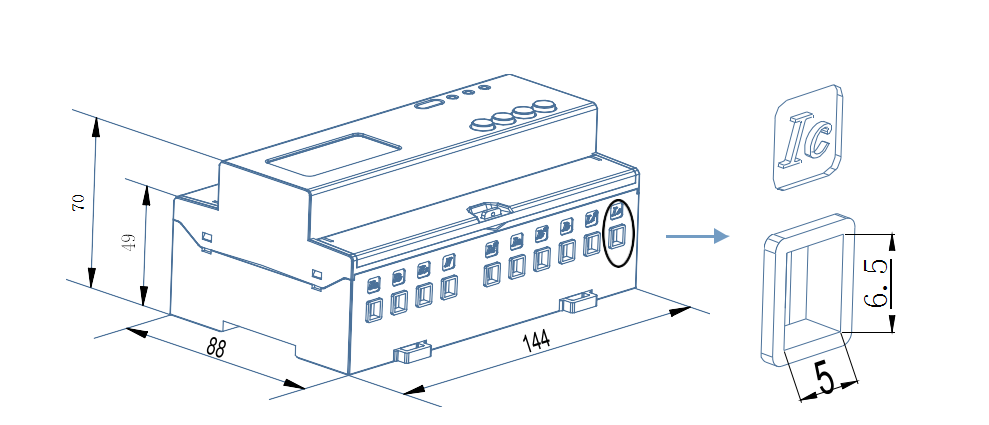

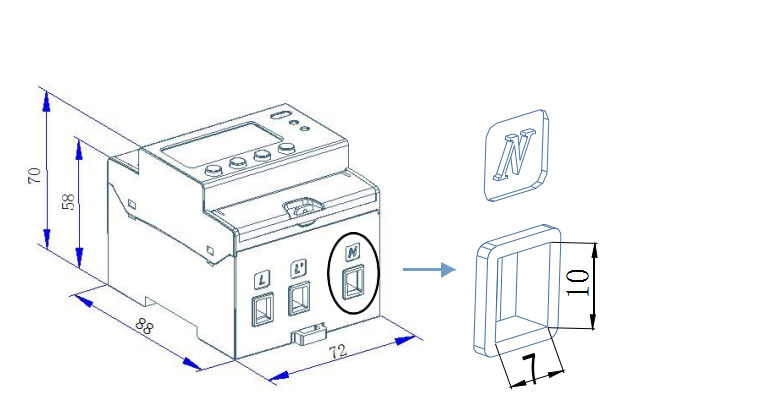

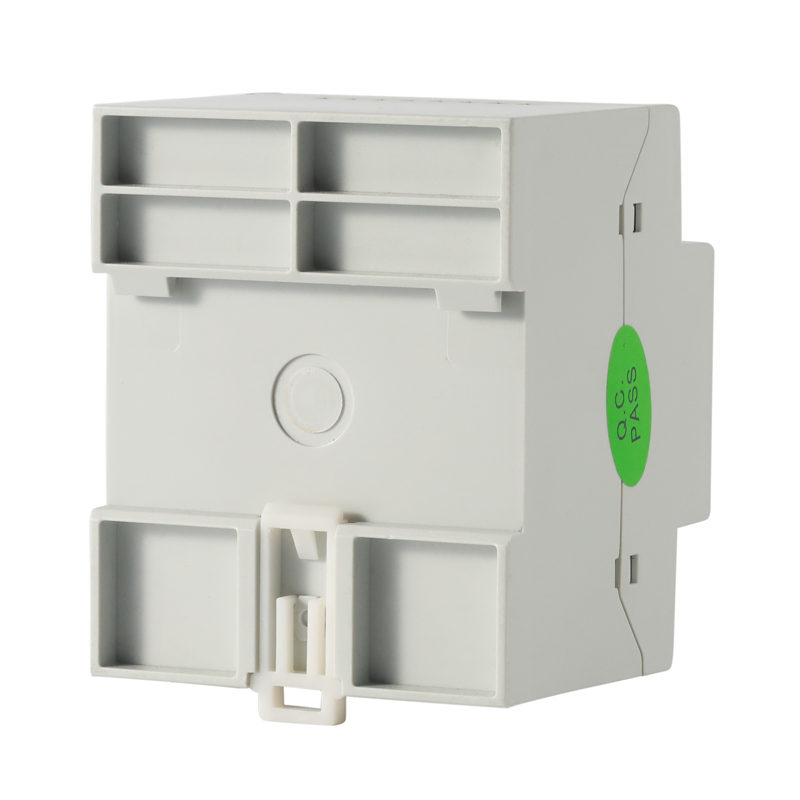

Outline (Length × Width × Height) |
72mm×88mm×70mm |
144mm×88mm×70mm |
|
Maximum wiring ability (flexible cable) |
25mm2 |
|
|
Temperature range |
Work temperature |
-25℃~55℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Relative humidity |
≤95%）(No condensation) |
|
|
Altitude |
<2000m |
|
-
CE Certificate
-
Manual of ADL100-EY
