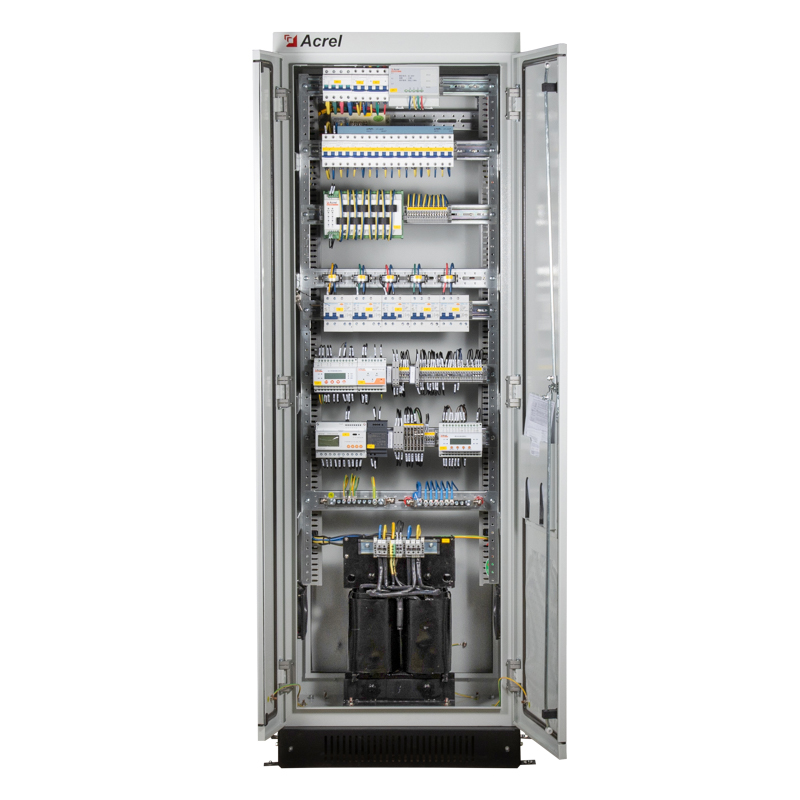

GGF Medical IT Isolated Power System
● Suitable for distribution system in group 2 medical location
● Using Q235A High Quality Cold Rolled Steel Plate
● Louver type heat dissipation fan
● Various installation types
● IP31
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Characteristic
Product Description
Medical isolation power distribution cabinet is designed for medical group 2 power supply requirements .Insulation monitoring device installed in IT system. Each output circuit has a circuit breaker with short circuit protection function; the output circuit in TN-S system has a circuit breaker with leakage protection, Products are divided into GGF-O series three-phase isolated power cabinet,GGF-I series single-phase isolated power supply cabinet, according to the number of input voltage phases. the products meet IEC60364-7-710:2016 Electrical installations of buildings—Part 7-710：Requirements for special installations or locations—Medical locations and IEC 61439-2:2011 Low-voltage switchgear and control gear assemblies—Part2：Power switchgear and control gear assemblies.

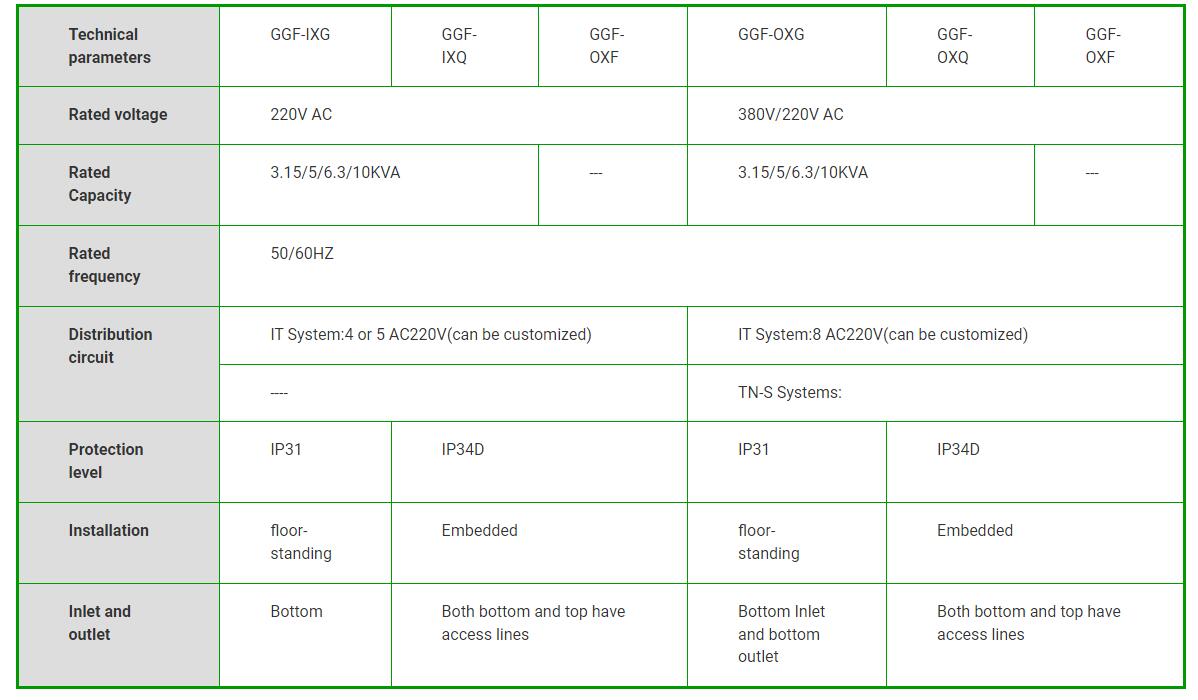

Parameter

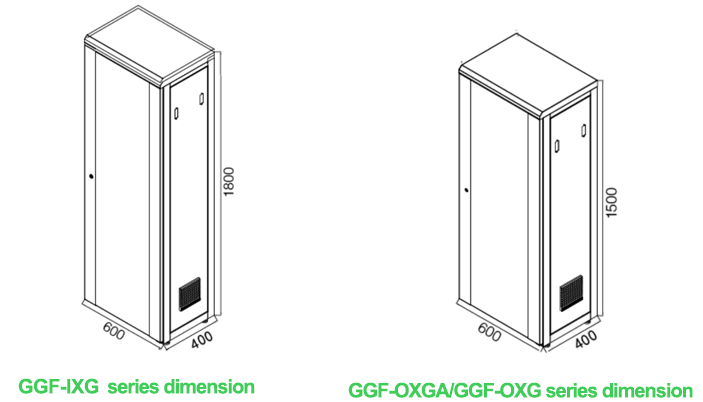

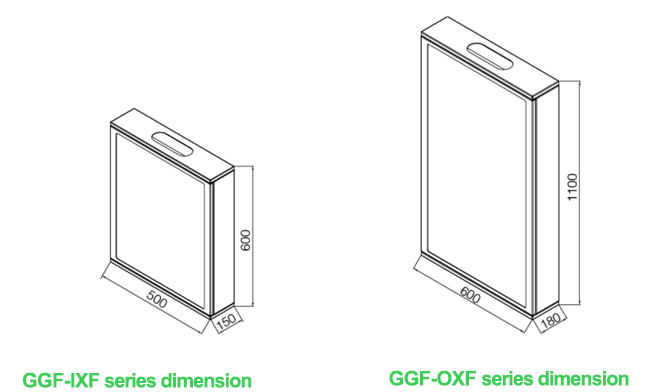

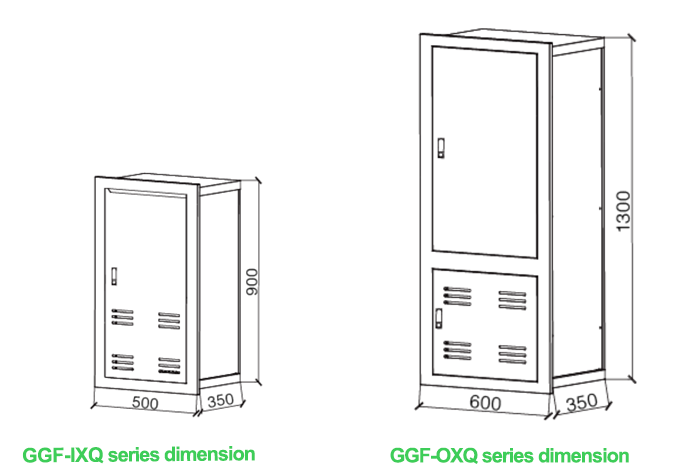

Dimension

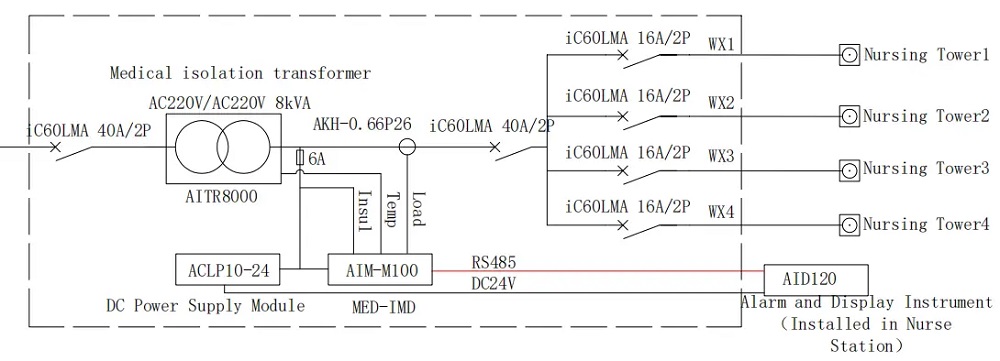

Diagram
