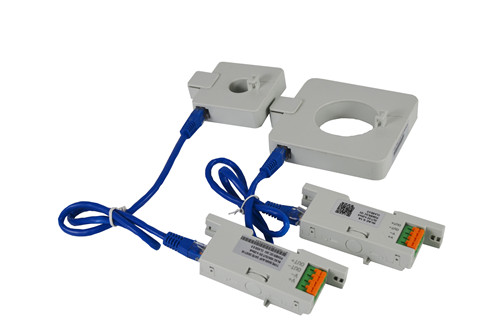

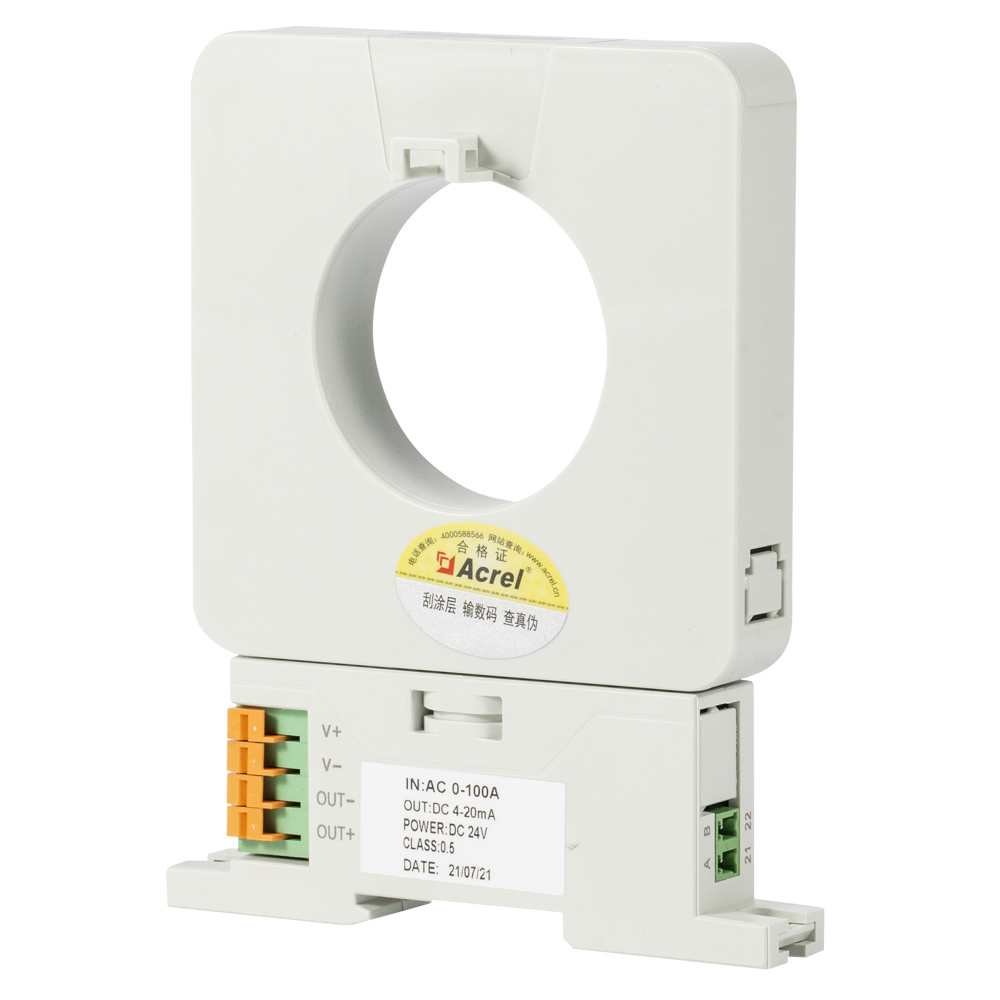

BA Split Type AC Current Sensor
- • Input:
AI——BA20(II)-AI: AC 0~(0.5-200)A
BA50(II)-AI: AC 0~(60-600)A
BA50L(II)-AI: AC 0~(0.1-1)A
- • Output: I——Direct Current e.g. 4-20mA ; V——Direct Current Voltage e.g. DC0-5V
- • Power Supply:12V/24V DC
- • Applicaiton:Paired with PLC for Industrial Automation
- • Accuracy: Class 0.5
- • Response Time:≤350ms
- • Installation:35mm DIN Rail/Screw fixed
- • Standard&Certificate: CE; TüV
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Characteristic
Product Description
BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the precise constant current technology and the linear temperature compensation technology to isolate and convert the measured current into the DC signal.They adopt the 24V or 12V power supply. They feature the large overload capacity, high accuracy, isolation and safety and low power consumption. Applications cover the industrial automation sector.

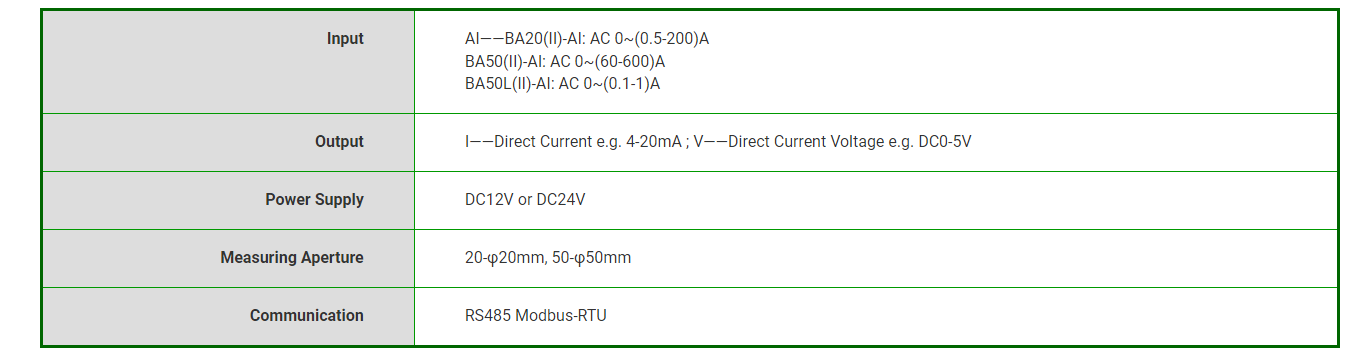

Parameter

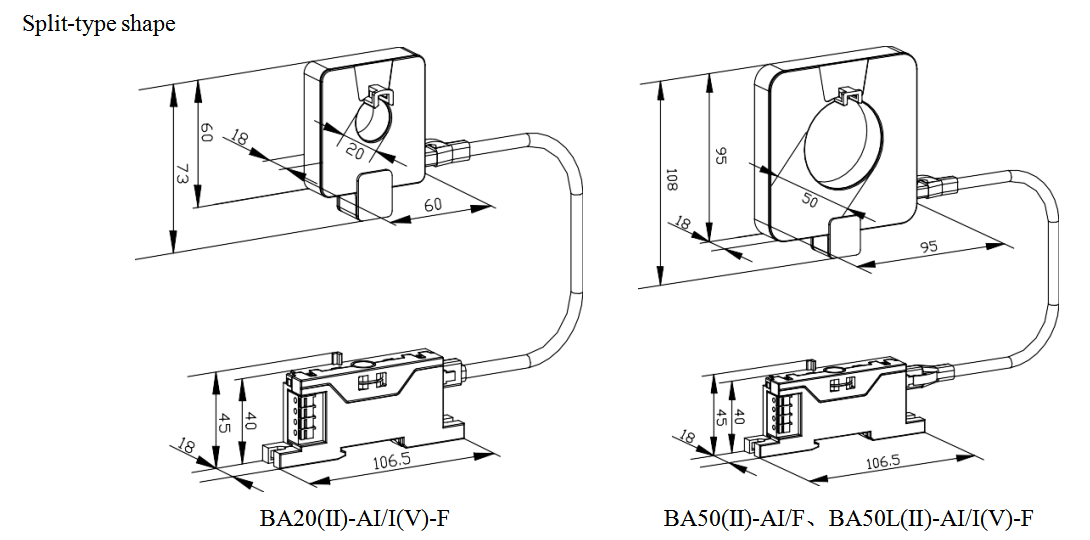

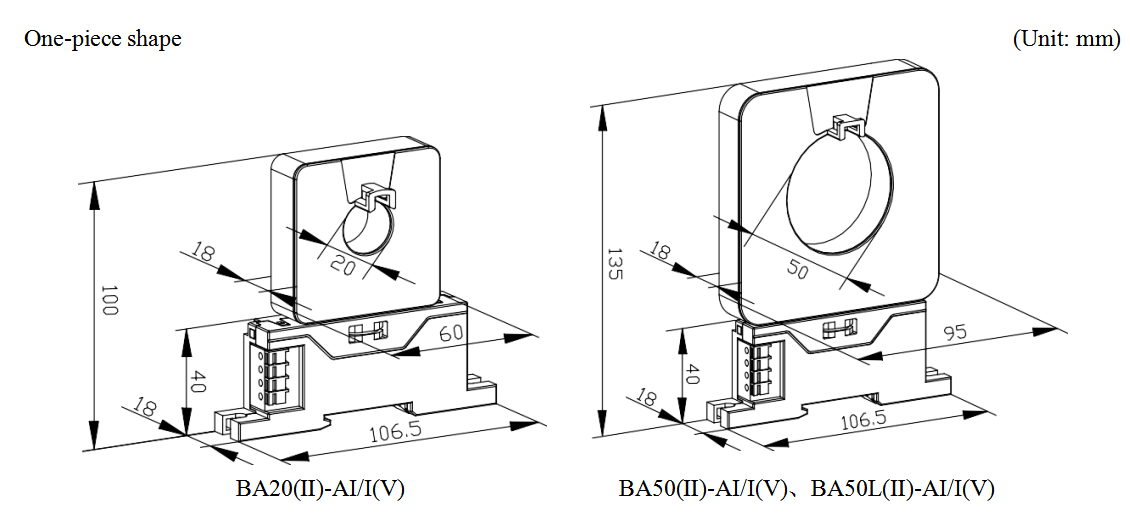

Dimension

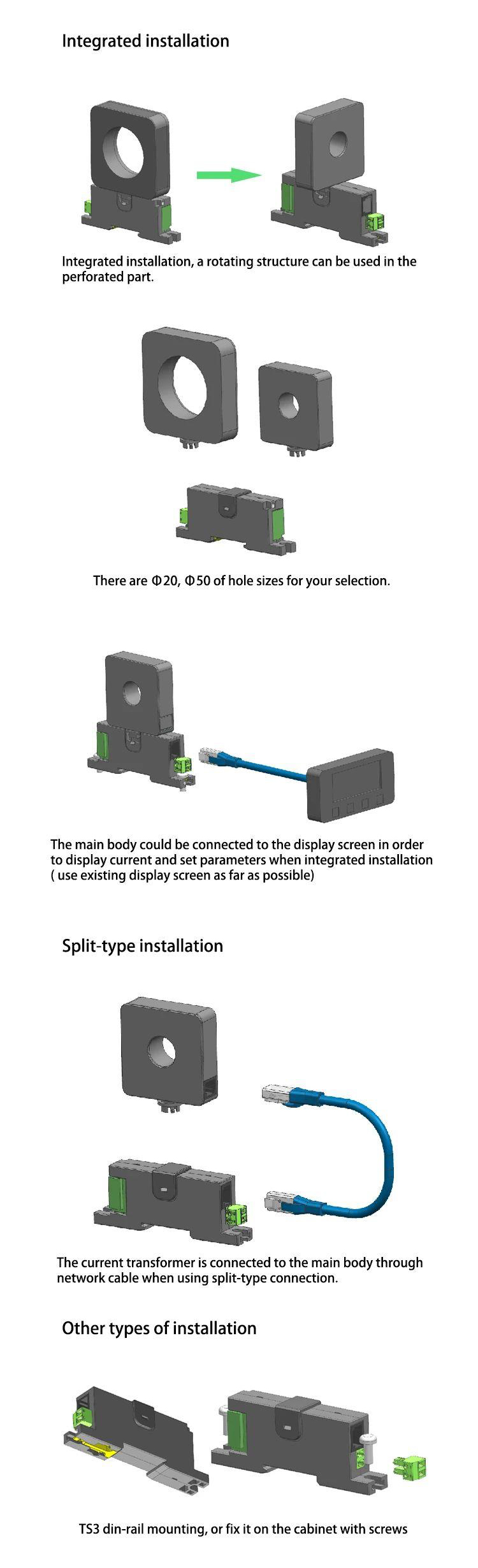

Installation
Application

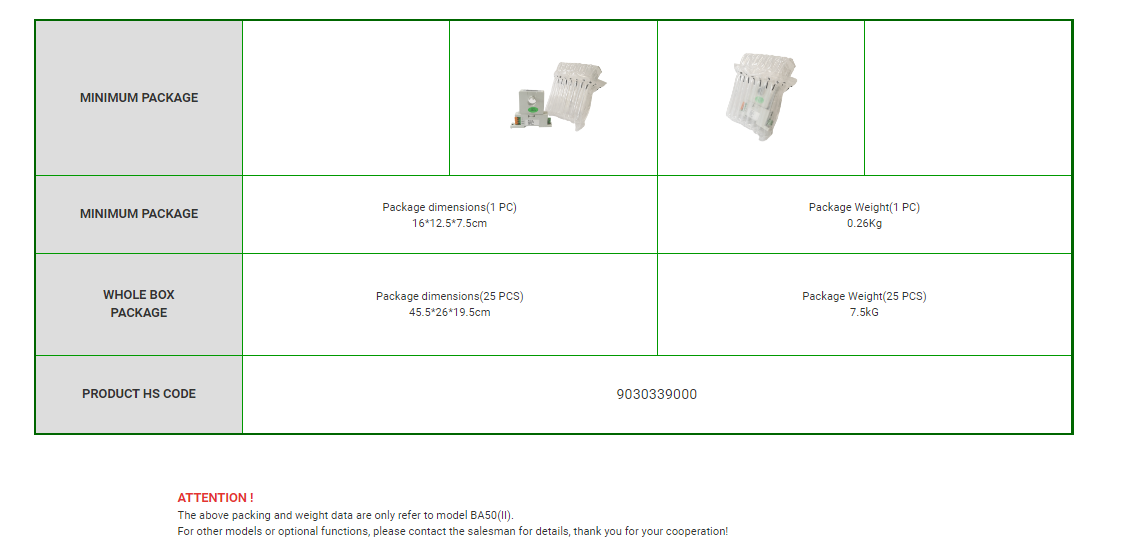

Package
Parameter
Downloads
-
CE Certificate
-
BA Current Transducer Manual
