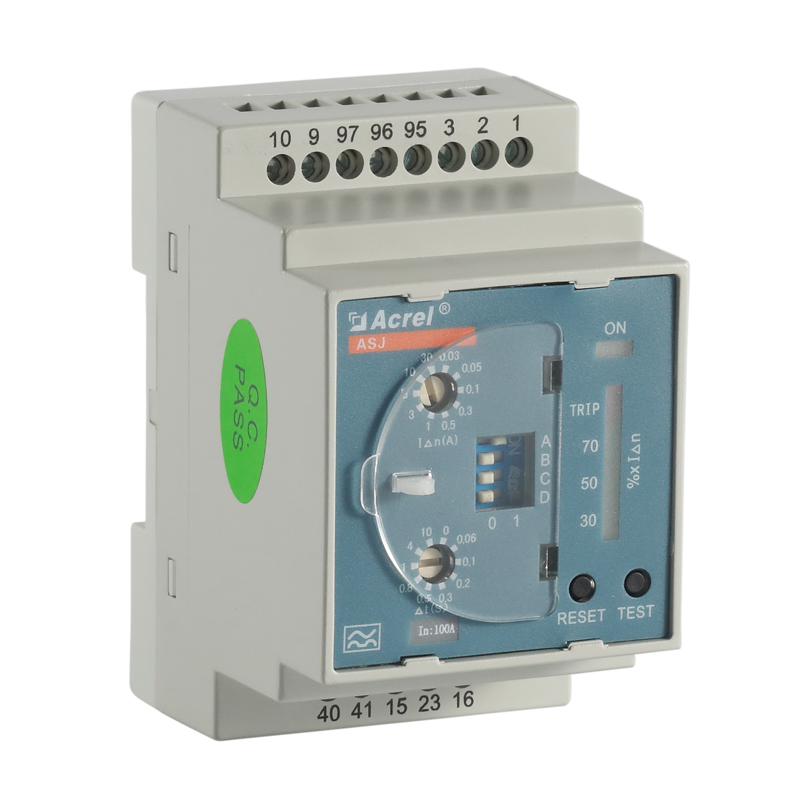

ASJ10-LD1C Earth Leakage Relay
● The measurement of A & AC-type residual current;
● Indicator of current off-limit alarm;
● The setting of rated residual action current;
● The setting of non-driving time of limitation.
● Two-pair relay output;
● Possessing the function of on-the-spot and long-distance testing and resetting;
ASJ series residual current operated relay can be combined with low voltage circuit breaker or low voltage contactor to form a residual current protection device, which is mainly used for the TT and TN system distribution lines with AC 50Hz and rated voltage of 400V and below. It is used to protect the electrical circuit form ground faults, prevent equipment damage caused by earth fault current and electrical fire accidents, and can also be used to provide indirect contact protection against personal electric shock hazard. Products meet the requirements of GB/T 22387-2016 residual current operated relay.
● Subway; ● Large gymnasium; ● Power plant; ● Petrochemical industry;
● Pharmaceutical industry; ● Mining industry; ● Photovoltaic new energy
