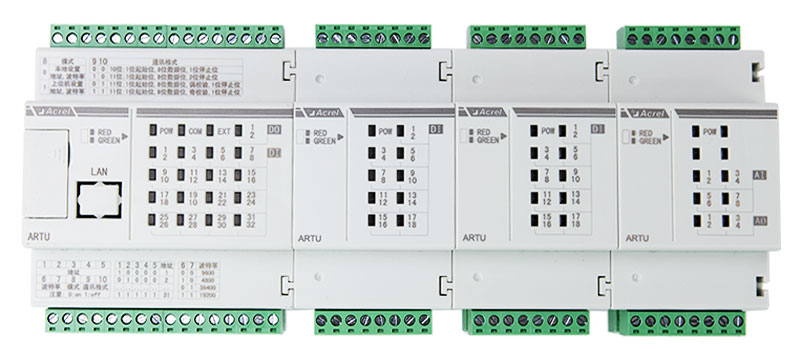

ARTU100 Series Remote Terminal Units
●RS485 (MODBUS -RTU)

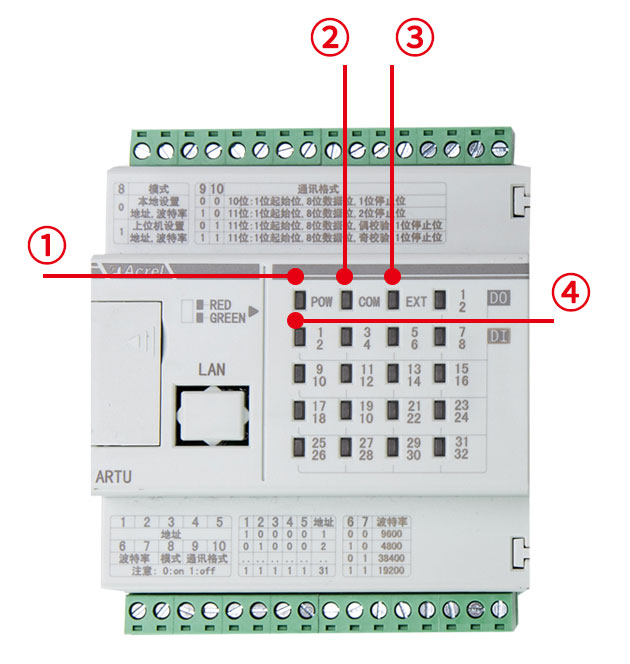

● Channel state indicator and communication state indicator
● 24VDC (±10%); 220VAC, allow AC/DC 85~265V
● 2-way 10-100mbits adaptive Ethernet communication, support IPV4, IPV6.

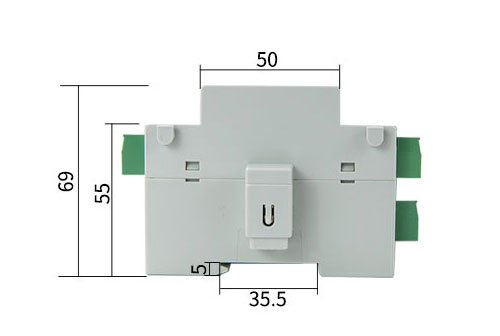

● 35 mm Din Rail installation
ARTU100 series remote communication& control unit is designed particularly for acquisition of switching value and remote relay output in applications like intelligent distribution and industrial automation. It implements the data exchange through communication and upper computer monitoring system.
| PQWER SUPPER | AC/DC 85-265V 、 DC48V | ||
| POWER CONSUMPTION | ≤9W (excluding modules); ≤15W (including modules, up to 3 modules) | ||
| MODEL | ARTU100-K32 | 32-path DI (active/passive, optional) | |
| ARTU100-K16 | 16-path DI (active/passive, optional) | ||
| ARTU100-KJ8 | 8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity; AC 250V/3A DC 30V/3A; | ||
| COMUMICATION | 485 communication | RS485 interface | 2-path 485 communication; Modbus-RTU protocol;baud-rate 1200 ~ 38400bps |
| OTHER | Dial switch | 10 bits | |
| Indicator light | 20 indicator lights | ||
| PQWER SUPPER | AC/DC 85-265V 、 DC48V | ||
| POWER CONSUMPTION | ≤9W (excluding modules); ≤15W (including modules, up to 3 modules) | ||
| MODEL | ARTU100-K32 | 32-path DI (active/passive, optional) | |
| ARTU100-K16 | 16-path DI (active/passive, optional) | ||
| ARTU100-KJ8 | 8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity; AC 250V/3A DC 30V/3A; | ||
| COMUMICATION | 485 communication | RS485 interface | 2-path 485 communication; Modbus-RTU protocol;baud-rate 1200 ~ 38400bps |
| OTHER | Dial switch | 10 bits | |
| Indicator light | 20 indicator lights | ||
-
ARTU100 Series of Remote Terminal Units
