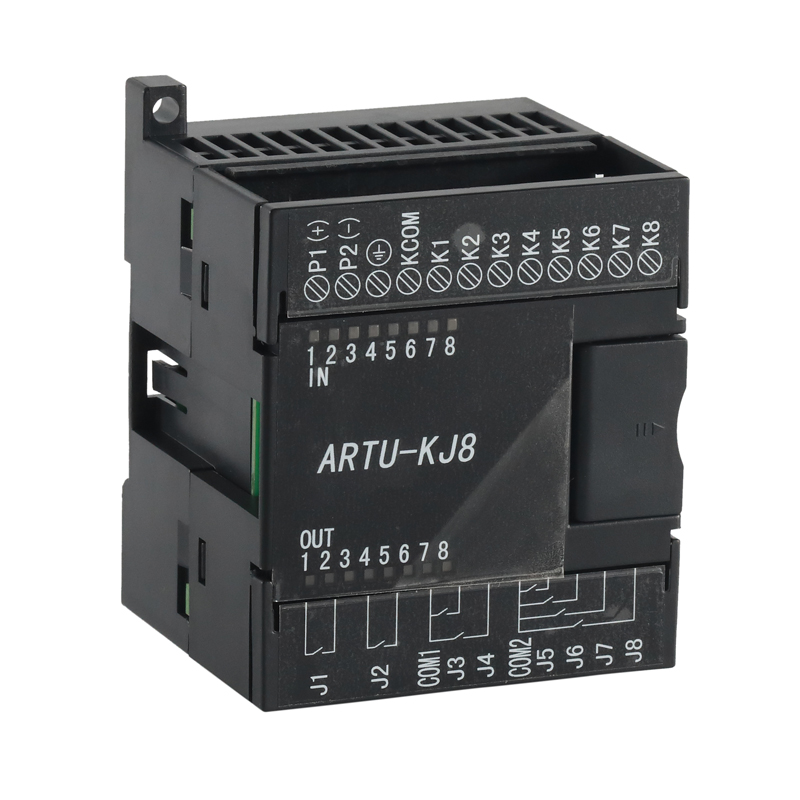

ARTU-KJ8 Remote Terminal Unit
●RS485 (MODBUS -RTU)
● Channel state indicator and communication state indicator
● 24VDC (±10%); 220VAC, allow AC/DC 85~265V
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Characteristic
Product Description
ARTU-KJ8 remote communication& control unit is designed particularly for acquisition of switching value and remote relay output in applications like intelligent distribution and industrial automation. It implements the data exchange through communication and upper computer monitoring system.
Features

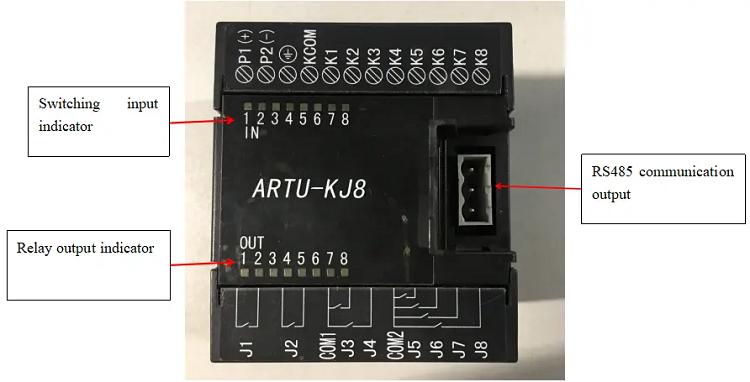

Wiring
Connection
Parameters
| PQWER SUPPER | AC/DC 85-265V 、 DC48V | ||
| POWER CONSUMPTION | ≤9W (excluding modules); ≤15W (including modules, up to 3 modules) | ||
| MODEL | ARTU100-K32 | 32-path DI (active/passive, optional) | |
| ARTU100-K16 | 16-path DI (active/passive, optional) | ||
| ARTU100-KJ8 | 8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity; AC 250V/3A DC 30V/3A; | ||
| COMUMICATION | 485 communication | RS485 interface | 2-path 485 communication; Modbus-RTU protocol;baud-rate 1200 ~ 38400bps |
| OTHER | Dial switch | 10 bits | |
| Indicator light | 20 indicator lights | ||

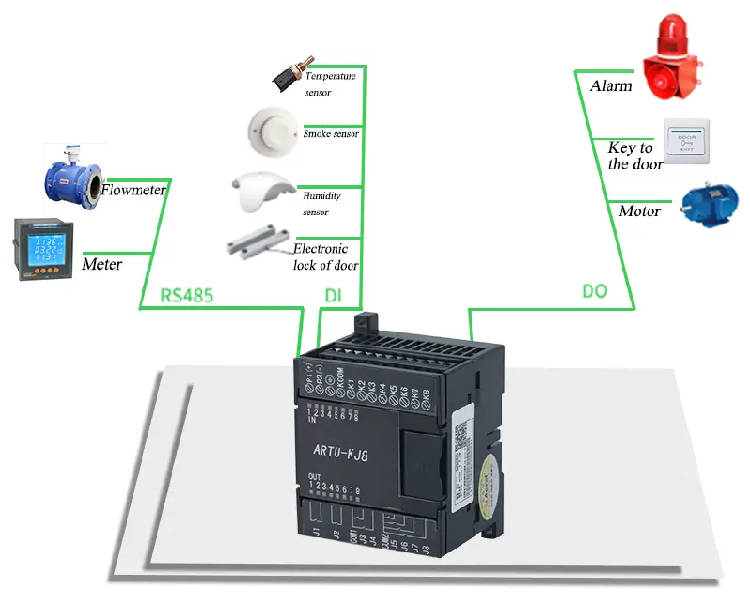

Application on site
Download
-
ARTU Series of Remote Terminal Units
