ARTU-K32 Remote Terminal Unit
●RS485 (MODBUS -RTU)
● Channel state indicator and communication state indicator
● 24VDC (±10%); 220VAC, allow AC/DC 85~265V
● 35 mm Din Rail installation
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Characteristic
Product Description
ARTU-K32 Series Remote Terminal Unit:RS485 (MODBUS -RTU);channel state indicator and communication state indicator;24VDC, range DC18~36V; 220VAC/DC, range AC85~265V, DC100~350V.
Parameters
| PQWER SUPPER | AC/DC 85-265V 、 DC48V | ||
| POWER CONSUMPTION | ≤9W (excluding modules); ≤15W (including modules, up to 3 modules) | ||
| MODEL | ARTU100-K32 | 32-path DI (active/passive, optional) | |
| ARTU100-K16 | 16-path DI (active/passive, optional) | ||
| ARTU100-KJ8 | 8-path DI (active/passive, optional); 8-path DO, output mode: relay normally-open contact output, contact capacity; AC 250V/3A DC 30V/3A; | ||
| COMUMICATION | 485 communication | RS485 interface | 2-path 485 communication; Modbus-RTU protocol;baud-rate 1200 ~ 38400bps |
| OTHER | Dial switch | 10 bits | |
| Indicator light | 20 indicator lights | ||

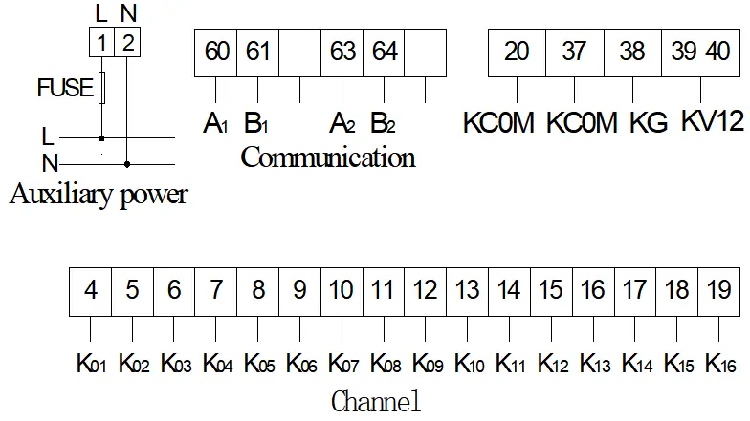

Wiring
Connection

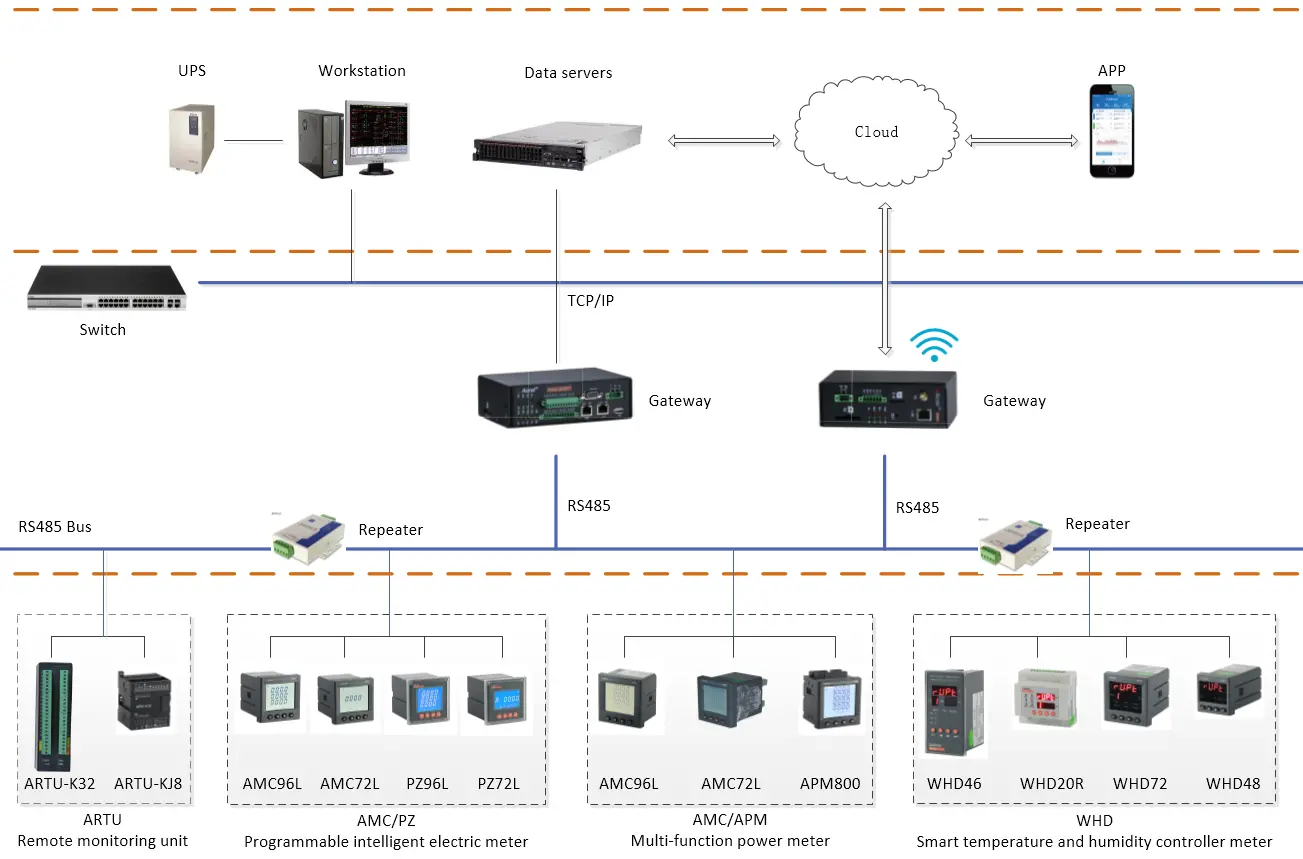

Application on site
Download
-
ARTU Series of Remote Terminal Units
