Meter Type

Basic Function

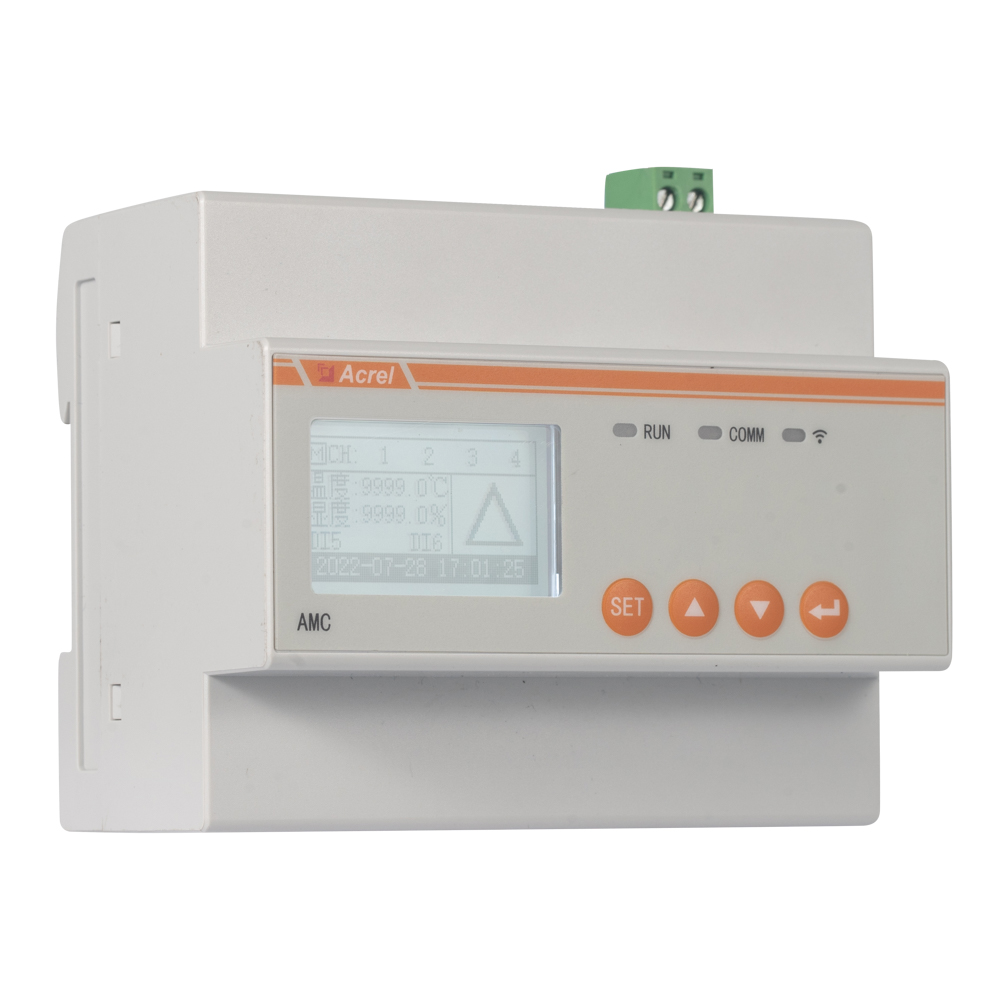

AMC200L-4E3

Can access 4 three-phase AC circuits at the same time, can directly measure the voltage, current, power,
power factor and other parameters, 6 switching input (2 active, 4 passive), 2 switching output, 1 RS485, 4 NTC temperature,
1 temperature and humidity measurement, with liquid crystal display

AMC200L-8E3

Can access 8 three-phase AC circuits at the same time, can directly measure the voltage, current, power,
power factor and other parameters, 6 switching input (2 active, 4 passive), 2 switching output, 1 RS485, 4 NTC temperature,
1 temperature and humidity measurement, with liquid crystal display

Technical Parameter

Technical Indicator

Input

Frequency

45～65Hz；

Voltage

Rating: AC 3×220V/380V;

Overload: 1.2 times rated (continuous); 2 times rating value/1 second;

Power consumption: ≤0.5VA (per channel);

Current

Rating: AC xxxA/50mA, need external transformer;

Overload: 1.2 times rated (continuous); 10 times rating value /1 second;

Power consumption: ≤0.5VA (per channel);

Function

Pulse Output

Output mode: open collector optocoupler pulse (default 400imp/kWh);

Communication

Modbus-RTU or YD/T 1363 protocol(use in China);Baud rate 1200～38400;

Switch

Input

Output

Output mode: relay normally open contact output;

Contact capacity: AC 250V/3A or DC 30V/3A;

NTC Temperature Measurement

Temperature: -20~100℃ (accuracy ±2℃);

Temp&Humidity

Measurement

Temperature: -20~100℃ (accuracy ±2℃); Humidity: 20-90%RH (accuracy ±5%RH)

Measurement accuracy

Frequency 0.05Hz, voltage and current 0.5 level, active power 1 level;

Auxiliary power supply

AC/DC 85 ~ 265V; Power consumption ≤10VA;
