AMC16Z-FAK48 Multi Channel Din Rail Ac Power Meter
● Designed specifically for the power supply management of server in the data center
● A+B independent 24 circuits（48 in total）
● U, I, P, Q, S, PF, kWh, kvarh
● 2nd-31st Harmonic
● DIN 35 mm
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Characteristic
Product Description
AMC16Z series multi channel din rail ac power meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.
Parameter
| Technical parameters | AMC16Z-FDK24 | AMC16Z-FDK48 |
| Measured parameter | Voltage,current,power,electrical energy,switching state | |
| Bus voltage | Ratetd | 48VDC,240VDC,336VDC |
| Currentoutcoming line circuit | Ratetd | 5V (Hall sensor,external power supply ±12V) |
| Measurement precision | Outgoing line | Voltage/current level 0.5,power/electric energy level 1 |
| Auxiliary power | Get power supply from AMC16Z-ZD | |
| Environment | Work: -15℃ ~ 55℃ Storage: -25℃ ~ 70℃ Relative humidity ≤93% | |
| Communication | RS485/Modbus-RTU | |
| Installation | DIN35mm guide rail or baseplate mounted | |
| Protection level | IP20 | |
| Security | All terminals and the insulation resistance between the conductive piecesnot below 100 m Ω | |

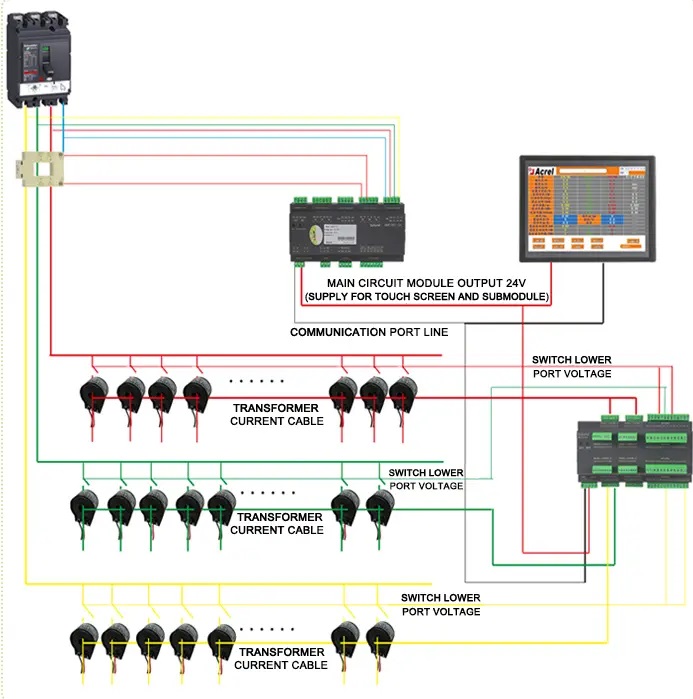

Wiring
Dimension
Carbinent Diagram
Network
Application on site
