● Rated Input: DC 0~(50-500A)
● Rated Output: DC 4-20mA
● Power Supply: ±12~±15Vdc/24V
● Accuracy: Class 1.0
● Response Time: ≤5us

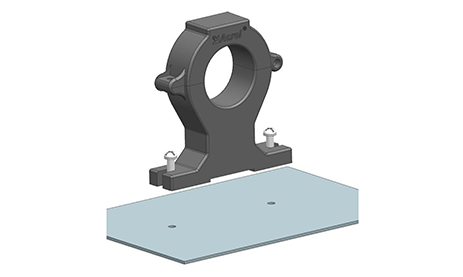

● Installation: Clamp on (Split-core) measuring cable and screw fixed on panel
● Standard&Certificate: CE; IEC; LVD
|
Size / Type |
Overall dimensions |
Hole size |
Installation dimensions |
Picture |
|||||
|
W |
H |
D |
a |
e |
Φ |
M |
N |

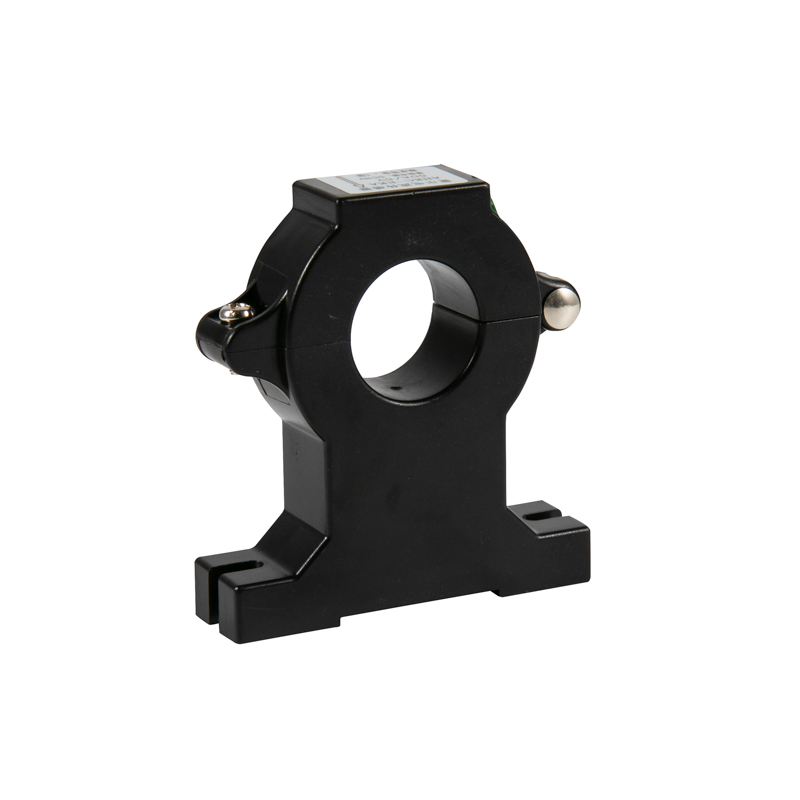

Picture 1 |
|
|
AHKC-EKA |
60 |
64 |
16 |
/ |
/ |
20 |
47 |
/ |
Picture 1 |
|
AHKC-EKAA |
60 |
64 |
16 |
/ |
/ |
20 |
47 |
/ |
Picture 1 |
|
AHKC-EKDA |
60 |
64 |
16 |
/ |
/ |
20 |
47 |
/ |
Picture 1 |
|
AHKC-EKB |
100 |
102 |
24 |
/ |
/ |
40 |
80 |
/ |
Picture 1 |
|
AHKC-EKBA |
100 |
102 |
24 |
/ |
/ |
40 |
80 |
/ |
Picture 1 |
|
AHKC-EKBDA |
100 |
102 |
24 |
/ |
/ |
40 |
80 |
/ |
Picture 1 |
|
AHKC-EKC |
115 |
110 |
27 |
/ |
/ |
55 |
95.5 |
/ |
Picture 1 |
|
AHKC-EKCA |
115 |
110 |
27 |
/ |
/ |
55 |
95.5 |
/ |
Picture 1 |
|
AHKC-EKCDA |
115 |
110 |
27 |
/ |
/ |
55 |
95.5 |
30 |

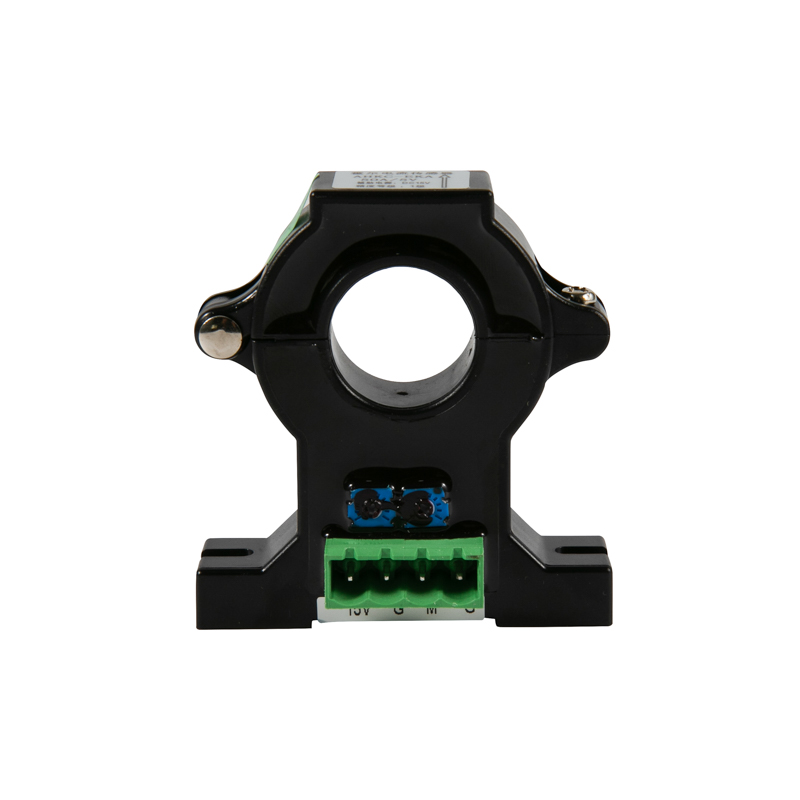

Picture 2 |
|
AHKC-K |
127 |
63 |
25 |
64 |
16 |
/ |
/ |
30 |
Picture 2 |
|
AHKC-KAA |
127 |
63 |
25 |
64 |
16 |
/ |
/ |
30 |
Picture 2 |
|
AHKC-KDA |
127 |
63 |
25 |
64 |
16 |
/ |
/ |
46 |
Picture 2 |
|
AHKC-H |
149 |
79 |
25 |
82 |
32 |
/ |
/ |
60 |
Picture 2 |
|
AHKC-KA |
176 |
95.5 |
29 |
104 |
36 |
/ |
/ |
80 |
Picture 2 |
|
AHKC-HB |
204 |
111.5 |
29 |
132 |
52 |
/ |
/ |
48*2 |
Picture 2 |
|
AHKC-HBAA |
204 |
111.5 |
29 |
132 |
52 |
/ |
/ |
48*2 |
Picture 2 |
|
AHKC-HBDA |
204 |
111.5 |
29 |
132 |
52 |
/ |
/ |
48*2 |
Picture 2 |
|
Parameters |
Index |
|
Rated Input Current(DC) |
0～(50-500)A |
|
Rated Output Voltage(DC) |
4-20mA |
|
Accuracy Class |
1.0 |
|
Power Voltage |
DC24V |
|
Zero Offset Current |
±0.05mA |
|
Offset Current Drift |
≤±0.01mA/℃ |
|
Linearity |
≤0.2%FS |
|
Response Time |
≤20us |
|
Isolation Voltage |
2.5kV/50Hz/1min |
|
Operating Temperature |
-40℃～85℃ |
|
Storage Temperature |
-40℃～85℃ |
|
Consumption |
≤1.2W |
|
Over loading |
Continuance 1.2 |
