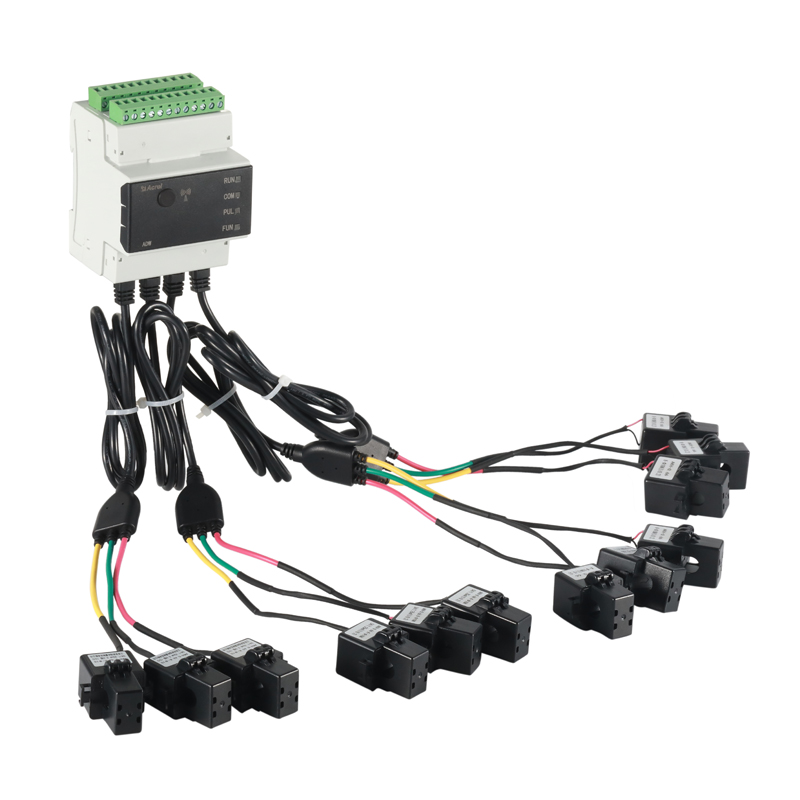

ADW200 IoT Wireless Energy Meter
● Mearsure up to 4 circuit 3 phase
● Mearsure all electric parameters
● Split core open loop CTs● External function module, such as MK(switching inputs and outputs), MTL(temperature measurement and leakage current measurement), AWT100(wireless communication)
ADW200 guideway multi-circuit power meter is mainly used for measuring various three-phase power parameters and measuring active and reactive power in low voltage network. At the same time, it can choose the maximum current input of four circuits. It has RS485 communication and 470MHz wireless communication functions. It is convenient for users to monitor, collect and manage electricity consumption, and can be flexibly installed in the distribution box, so as to realize the metering, statistics and analysis of electrical energy in different areas and different loads
12 External NTC Temp. Measurement 12 Channels DI + 4 Channels DO Downlink RS485; Uplink 4G, 2G, NB, Lora,
4 Channels Residual Current Measurement LoraWAN, Ethernet, WiFi, GPS, Profibus
① Main Body of ADW2xx; ② External Module 1(MTL/MK);
③ AWT100-*(NB/2G/4G/Lora/LW Communication)
① U / Pulse / DO / DI / Communication / Auxiliary Power Supply② Brand
③ Panel
④ Model Number
⑤ CH1, CH2, CH3, CH4 for current / extension module interface
⑥ Button
⑦ Infrared Status
⑧ Pulse Output Light
| Auxiliary power | AC/DC 85～265V; Consumption≤10VA; | |
|
Input
|
Frequency | 45～65Hz; |
|
Voltage |
AC 3×220V/380V; Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s; Power consumption: ≤ 0.5VA; |
|
|
Current |
AC 5A、100A、400A、600A;(External opening transformer); Power consumption: ≤ 0.5VA; Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s; |
|
|
Measurement accuracy |
Frequency 0.05Hz, voltage、current Class 0.5; 2-31st harmonic accuracy: ± 1%; Active electric energy level 1, reactive electric energy level 2; |
|
|
Features |
Pulse output | Output mode: optocoupler pulse with open collector; |
| Communication | RS485、Modbus-RTU; Baud rate 1200～38400; | |
| Switching Input | Dry contact input、Built in power supply; | |
| Switching Output |
Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A; |
|
