ADL3000-E/KC Dual Source DIN Rail 3-Phase Multi-Function Energy Meter
● Measurement: U、I、P、Q、S、PF、kWh、kvarh
● Accuracy: kWh: Class 0.5S,kVarh:Class 2
● Frequency: 45~65Hz
● Rated Voltage: AC 3×220/380V，3×380V，3×57.7/100V，3×100V
● Rated Current: 3×1（6）A，3×10（80）A
● switching input and output: 1DI(AC220V)/1DO
● Communication: RS485 (MODBUS-RTU)
● Multi-rate/tariff: 4 Tariff Rates and etc
● Installation: 35mm DIN Rail
ADL3000 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. DTSD1352 can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.
|
Voltage |
Reference voltage |
3*57.7/100V,3*220/380V,3*100V,3*380V |
||
|
Reference frequency |
50Hz |
|||
|
Consumption |
<10VA(Single phase) |
|||
|
Current |
Maximum current |
6A,80A |
||
|
Starting current |
Direct connect:0.004lb Connect via:0.001ln |
|||
|
Consumption |
<1VA(Single phase rated current) |
|||
|
Measurement performance |
Accuracy |
Class 0.5 |
||
|
Standards compliant |
IEC 62053-22:2003 |
|||
|
Pulse |
Pulse width |
80+20ms |
||
|
Pulse constant |
400imp/kWh 6400imp/kWh |
|||
|
Communication |
Interface |
RS485 |
||
|
Protocol |
Mod bus-RTU |
|||
|
Temperature range |
Work |
-25℃~55℃ |
||
|
Storage |
-40℃~70℃ |
|||
|
Humidity |
≤95%(No condensation) |
|||
|
Altitude |
<2000m |
|||
|
Switching input |
1 optocoupler input |
|||
|
Switching output |
1 Switching output |
|||

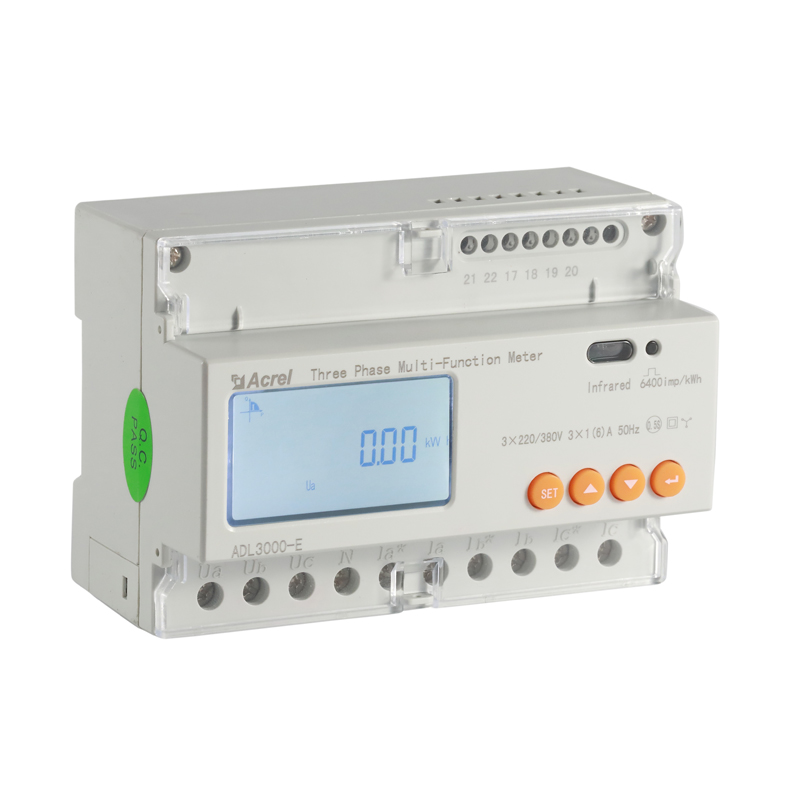

Front Pannel
① Seal for Anti theft
② Brand
③ Panel
④ Enter-wire
⑤ Auxiliary function
⑥ Pulse output light
⑦ Button ⑧ Outlet wire

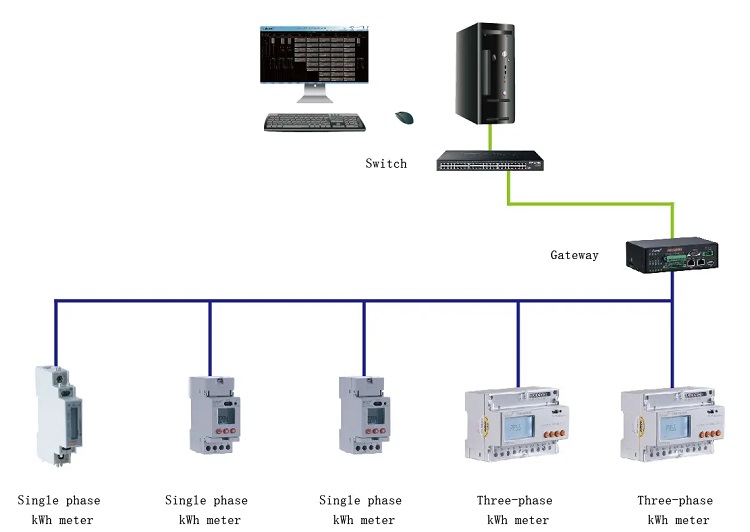

Network

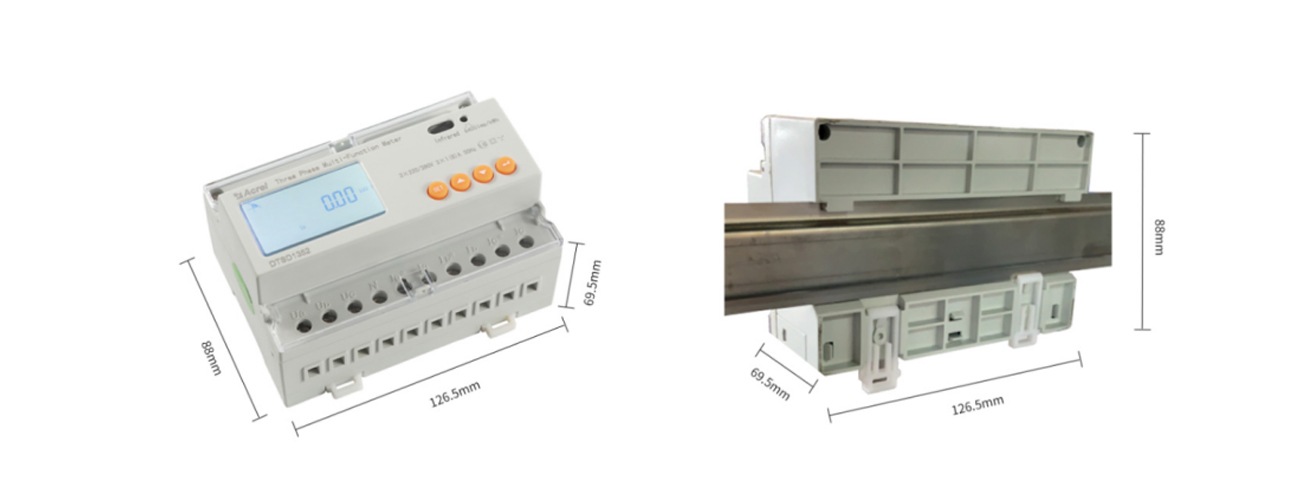

Dimension&Wiring
Installation

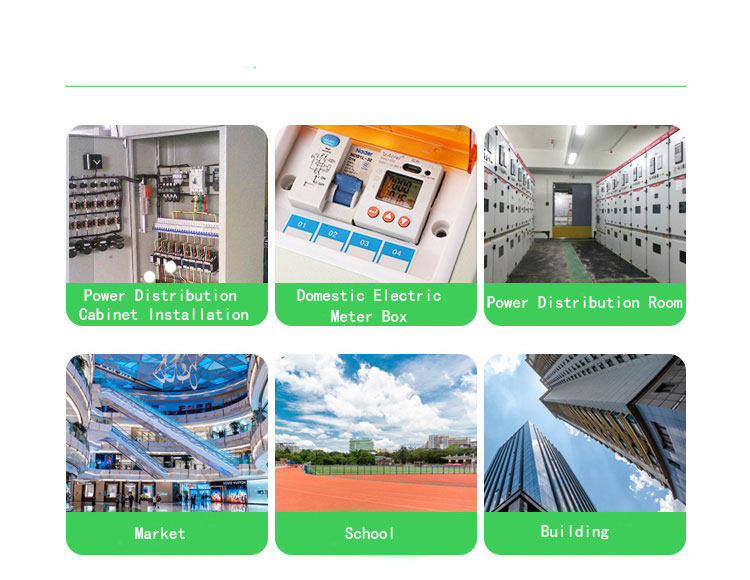

Product Applications
