ADL100-ETCT Single Phase Energy Meter
● Measurement: 1-phase AC kWh, Active Power, Current, Voltage and etc
● Accuracy: 1.0% (kWh)
● Frequency: 45~65Hz
● Rated Voltage: 220~264Vac (direct connect)
● Rated Current: 20(100)A AC (direct connect)
● Communication: RS485 (MODBUS-RTU)
● Multi-rate/tariff: 4 Tariff Rates and etc
● Installation: 35mm DIN Rail
ADL100 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.

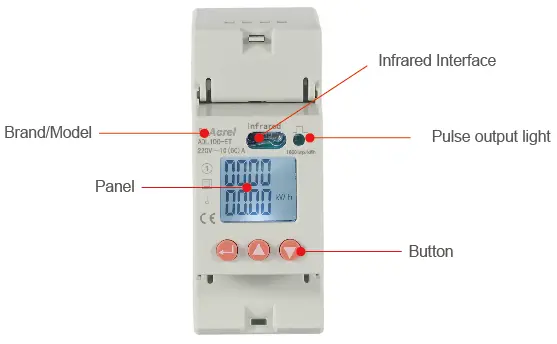

Front Pannel
Network

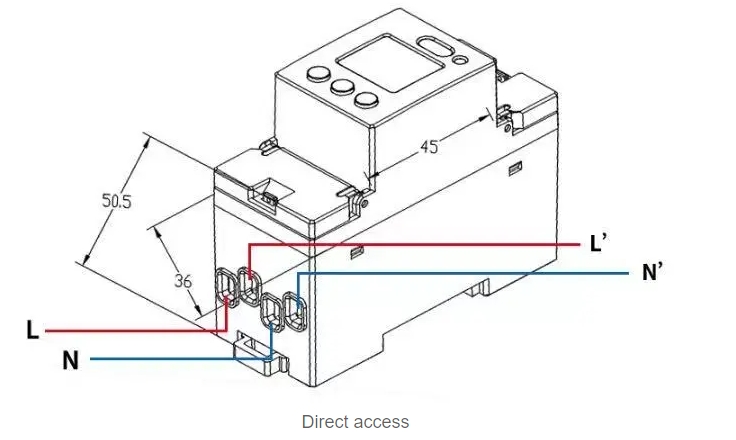

Dimension&Wiring
Installation
Product Applications
