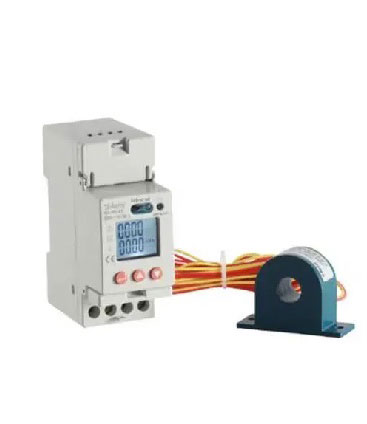

ADL100-ET Din Rail Energy Meter
● Measurement: 1-phase AC kWh, Active Power, Current, Voltage and etc
● Accuracy: 1.0% (kWh)
● Frequency: 45~65Hz
● Rated Voltage: 220~264Vac (direct connect)
● Rated Current: 10(60)A AC (direct connect)
● Communication: RS485 (MODBUS-RTU)
● Multi-rate/tariff: 4 Tariff Rates and etc
● Installation: 35mm DIN Rail
ADL100 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.
Front Pannel

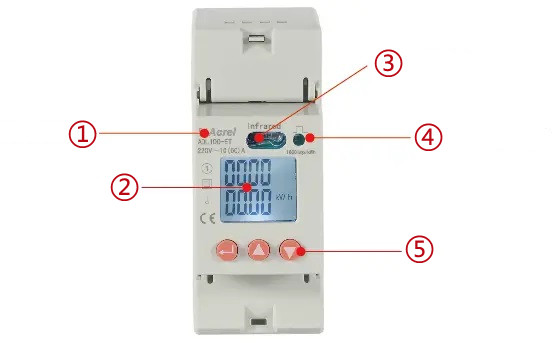

① Brand/Model ② Panel ③ Infrared Interface ④ Pulse output light ⑤ Button
Network

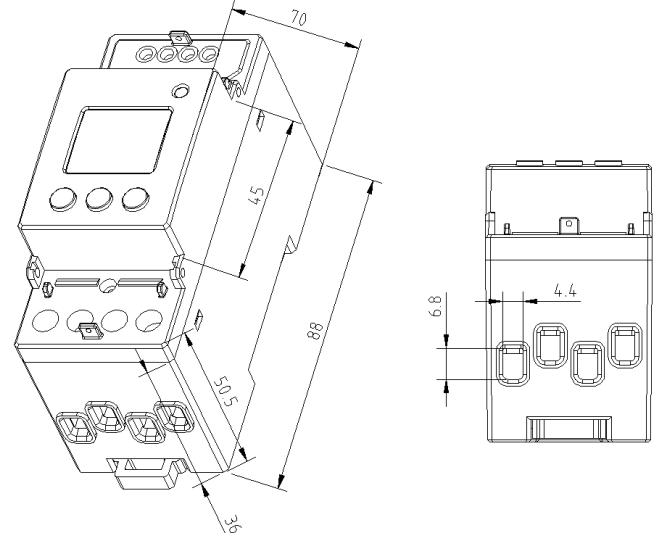

Dimension&Wiring

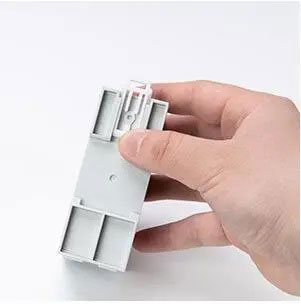

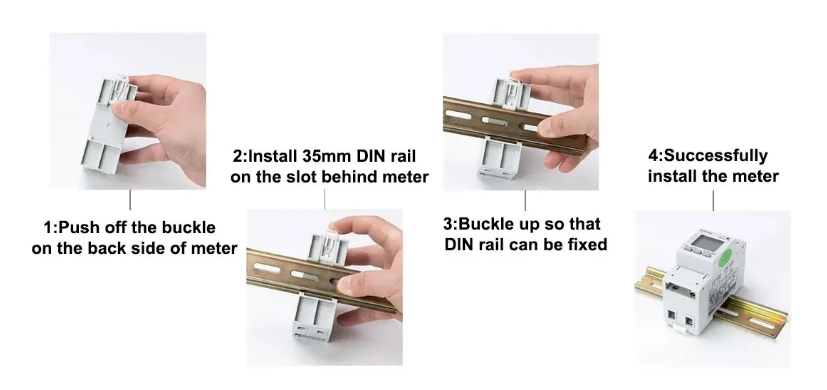

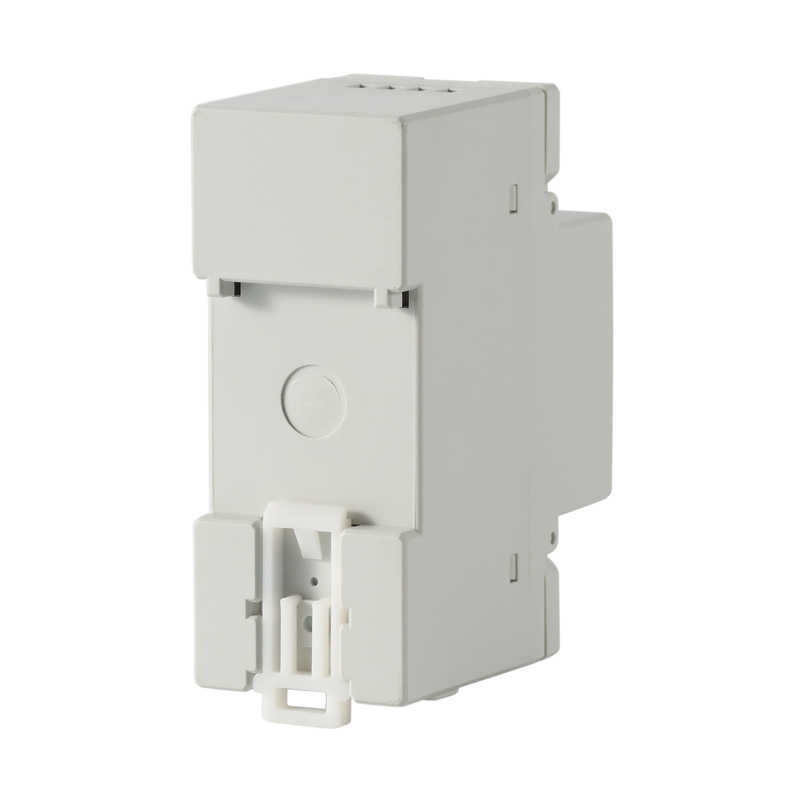

Installation
Product Applications
Function Description
|
Input voltage |
Rated voltage |
AC 220V |
|
Reference frequency |
50Hz |
|
|
Power consumption |
<10VA |
|
|
Input current |
Basic current |
10A,20A |
|
Maximum current |
60A,100A |
|
|
Starting current |
4‰Ib |
|
|
Consumption |
<4VA |
|
|
Measurement performance |
Accuracy of measuring |
kWh Class 1 |
|
Range of measuring |
000000.00~999999.99kWh |
|
|
Clock accuracy |
≤0.5s/d |
|
|
Active pulse |
Pulse width |
80±20ms |
|
Pulse constant |
1600imp/kWh |
|
|
Communication |
Interface |
RS485(A+、B-) |
|
Connection mode |
Shielded twisted pair conductors |
|
|
Protocol |
MOD BUS- RTU |
|
|
Dimensions (Length × Width × Height) |
88mm×36mm×70mm |
|
|
Temperature |
Work temperature |
-25℃~55℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Relative humidity |
≤95%(No condensation) |
|
|
Altitude |
<2000m |
|
-
