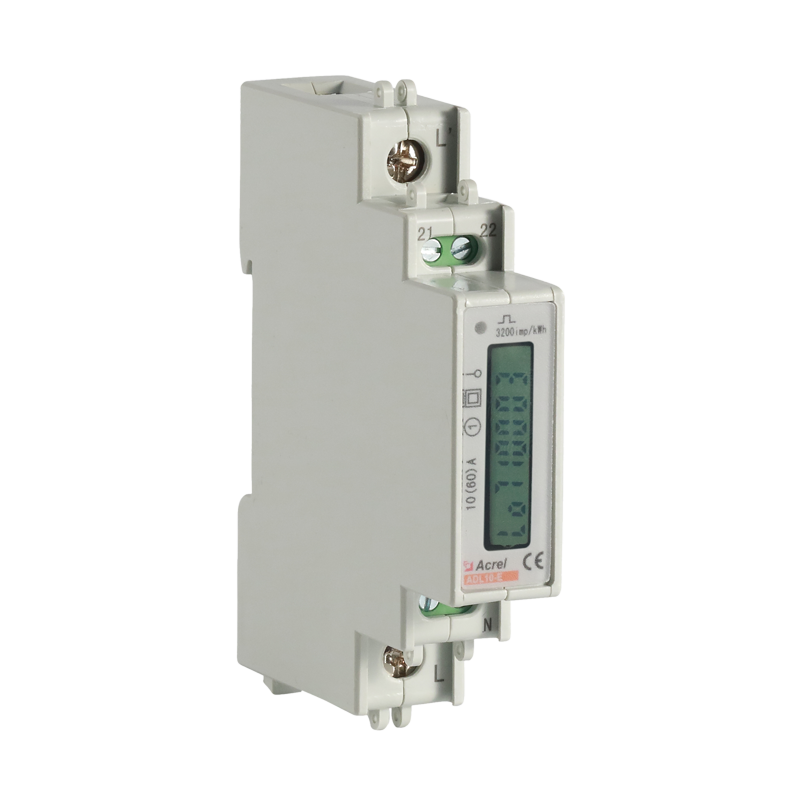

ADL10-E Single Phase Din Rail Energy Meter
● Measurement: 1-phase AC kWh, Active Power, Current, Voltage and etc
● Accuracy: kWh Class 1，Kvarh Class 2
● Frequency: 45~65Hz
● Rated Voltage: 220~264Vac (direct connect)
● Rated Current: 10(60)A AC (direct connect)
● Communication: RS485 (MODBUS-RTU)
● Installation: 35mm DIN Rail
ADL10 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.

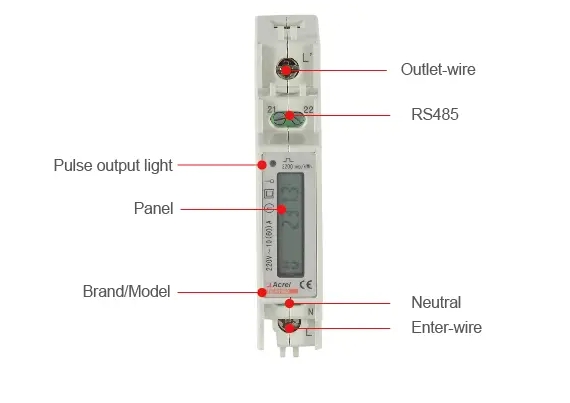

Front Pannel

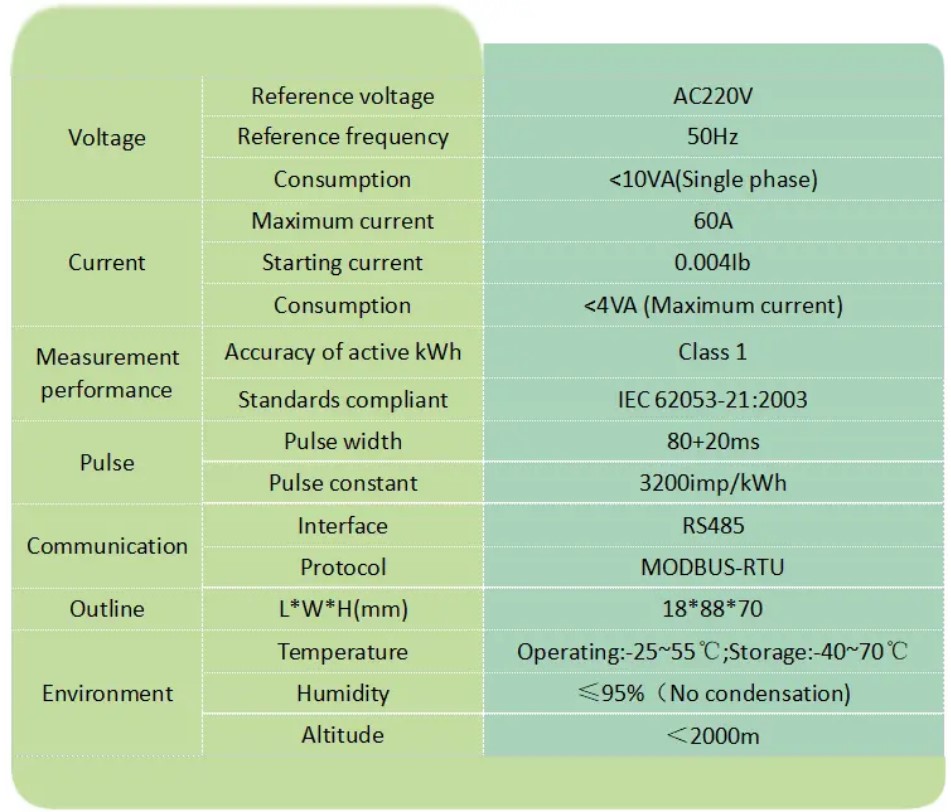

Parameter
Network

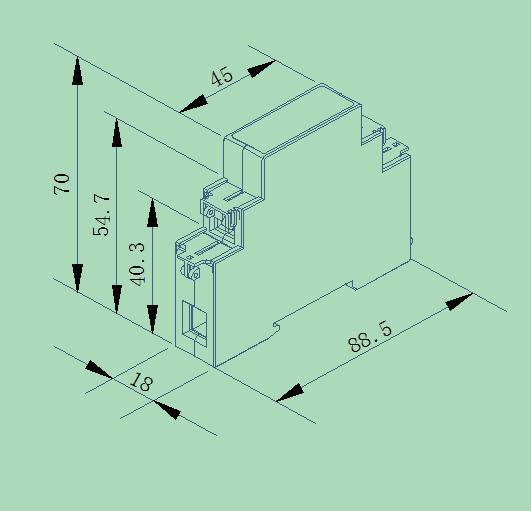

Dimension&Wiring
